The maximum operating temperature range for the V48A28T500BL is -40°C to +100°C, with a derating of 1.5% per °C above 80°C.
Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring that the module is mounted on a suitable thermal interface material. Vicor recommends a minimum airflow of 200 LFM (linear feet per minute) and a heat sink with a thermal resistance of 1°C/W or less.
Vicor recommends using a minimum input capacitance of 100 μF, with a voltage rating of 100 V or higher, to ensure stable operation and minimize input ripple.
Yes, the V48A28T500BL is designed to meet the requirements of high-reliability and military applications. Vicor offers a range of screening options, including burn-in, temperature cycling, and vibration testing, to ensure the module meets the required standards.
Vicor provides a troubleshooting guide in the application note 'V48A28T500BL Troubleshooting Guide' (AN-104). This guide covers common issues, their causes, and recommended solutions. Additionally, Vicor's technical support team is available to assist with any troubleshooting or design-related questions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V48A28T500BL Overview

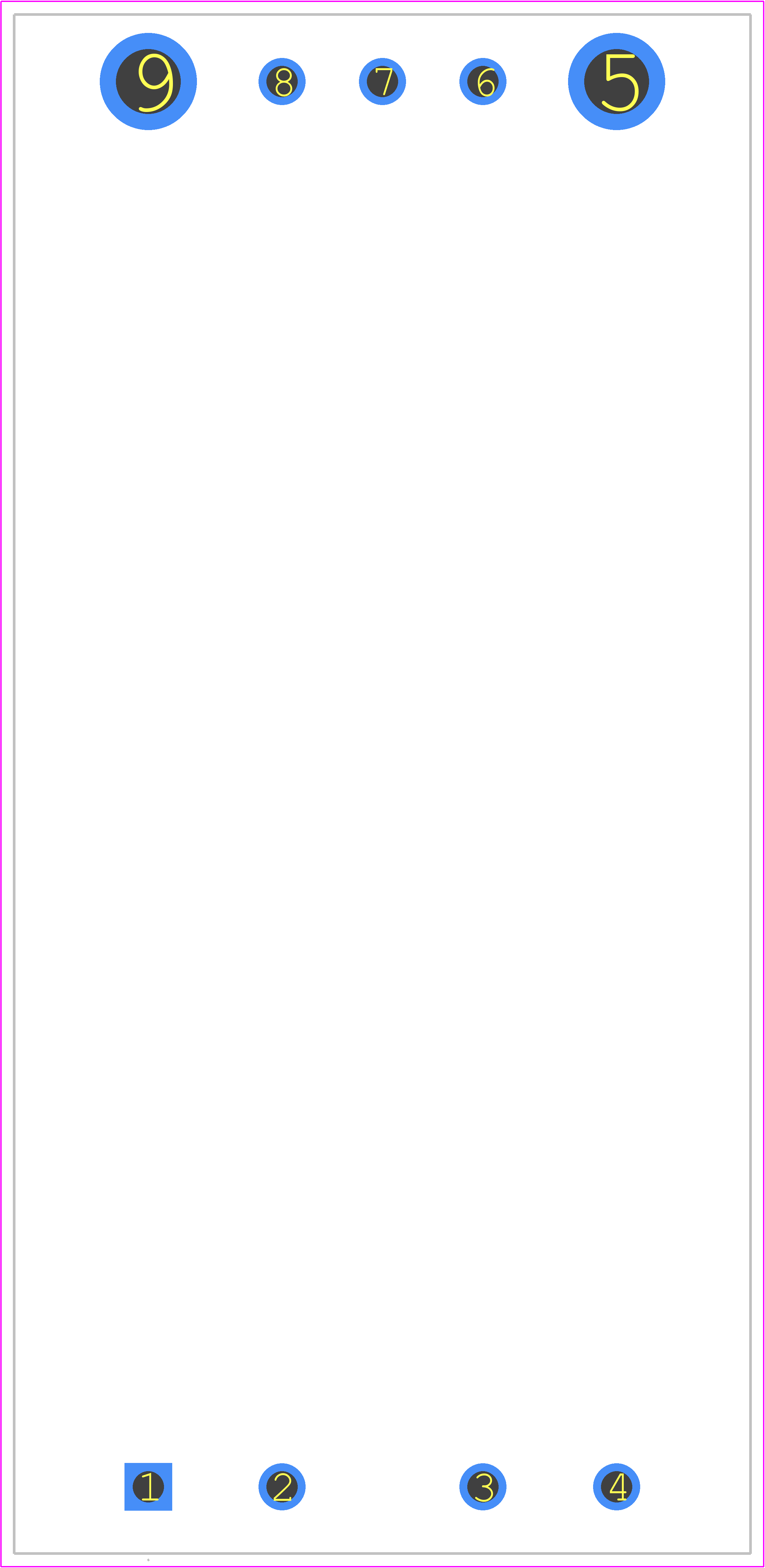

Use the download button to access the V48A28T500BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V48A2,
or try a keyword search, such as Power Supply Modules
