The recommended PCB layout for optimal thermal performance involves placing the component on a thermal pad with a minimum size of 10mm x 10mm, and ensuring a minimum of 1mm clearance around the component. Additionally, using thermal vias and a solid copper pour on the bottom layer can help to dissipate heat efficiently.
To ensure reliable soldering, it's recommended to use a soldering iron with a temperature range of 220°C to 250°C, and to apply a small amount of solder paste to the pads. The component should be placed on a flat, clean PCB surface, and the soldering process should be completed within 3-5 seconds to prevent overheating.
The maximum operating temperature range for the V5229W is -40°C to +125°C, with a maximum storage temperature range of -40°C to +150°C. Operating the component outside of these temperature ranges may affect its performance and reliability.
To prevent damage, it's recommended to handle the V5229W by the edges or the body, avoiding touching the pins or electrical contacts. The component should be stored in its original packaging or an anti-static bag to prevent electrostatic discharge (ESD) damage.
The recommended cleaning process for the V5229W involves using a soft-bristled brush to remove any debris or contaminants, followed by a gentle cleaning with a mixture of 10% IPA and 90% DI water. Avoid using harsh chemicals, abrasive materials, or ultrasonic cleaning, as these may damage the component.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V5229W Overview

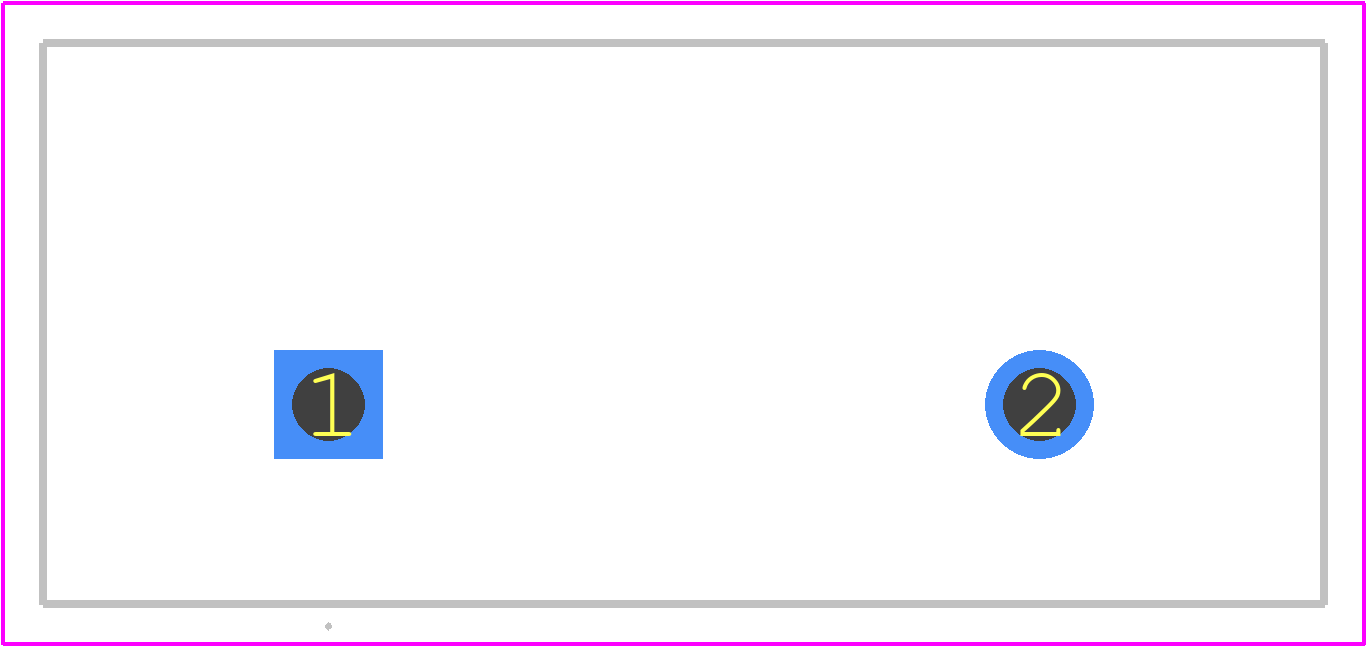

Use the download button to access the V5229W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V5229,
or try a keyword search, such as Heat Sinks
