Texas Instruments provides a recommended PCB layout and thermal management guide in their application notes (SLVAE03) and layout files (V62_16623_01XE_PCB_Layout.zip). It's essential to follow these guidelines to ensure optimal performance, reduce thermal resistance, and prevent overheating.
The selection of input and output capacitors depends on the specific application, output voltage, and ripple current requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. Refer to the datasheet and application notes for more detailed guidance.
The maximum ambient temperature for reliable operation is 85°C. As the ambient temperature increases, the device's performance may degrade, and the output voltage may drop. It's essential to ensure proper thermal management and consider derating the device's performance at higher temperatures.
The V62/16623-01XE has built-in overcurrent protection, but it's recommended to add external protection circuits to ensure reliable operation. TI provides guidance on implementing overcurrent protection and short-circuit protection in their application notes and design guides.
To characterize the V62/16623-01XE, TI recommends using a DC electronic load, a digital multimeter, and an oscilloscope. Additionally, a temperature chamber and a thermal imaging camera can be useful for thermal characterization.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V62/16623-01XE Overview

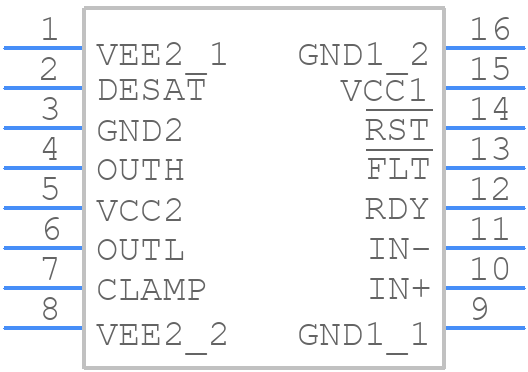

Use the download button to access the V62/16623-01XE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V62/1,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
