Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and EMI.
To ensure reliable operation, it's crucial to follow the recommended operating conditions, including temperature, voltage, and current ratings. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable temperature.
Operating the V62/17601-01XE outside the recommended input voltage range may affect its performance, power consumption, and reliability. Using a lower input voltage may reduce the output voltage and increase the dropout voltage, while using a higher input voltage may increase power consumption and reduce the device's lifespan.
To minimize power consumption and heat generation, use the lowest possible input voltage, optimize the output voltage and current, and consider using power-saving modes or shutdown features. Additionally, ensure good thermal design and use thermal management techniques to reduce heat generation.
The V62/17601-01XE is designed to meet EMI and RFI standards, but it's still essential to follow good design practices, such as using shielding, filtering, and grounding techniques to minimize electromagnetic interference and radio-frequency interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V62/17601-01XE Overview

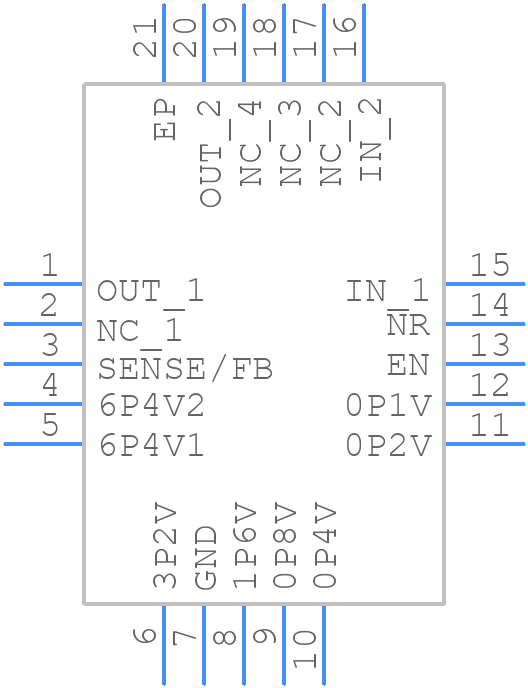

Use the download button to access the V62/17601-01XE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V62/1,
or try a keyword search, such as Linear Regulator ICs
