The recommended land pattern for the V8KM60DUHM3/H can be found in the Vishay Intertechnologies' application note AN48363, which provides detailed guidelines for PCB layout and assembly.
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating guidelines for voltage and current, and to ensure proper thermal management, such as using a heat sink or thermal interface material, to keep the junction temperature within the specified range.
The maximum surge current rating for the V8KM60DUHM3/H is not explicitly stated in the datasheet, but it's typically specified as 10 times the rated current (I DRM) for a duration of 10 ms. However, it's recommended to consult with Vishay Intertechnologies' application engineers for specific guidance on surge current handling.
Yes, the V8KM60DUHM3/H can be used in a parallel configuration to increase the current handling capability, but it's crucial to ensure that the devices are properly matched and that the current sharing is balanced to avoid overheating and reduce the overall reliability.
The recommended storage condition for the V8KM60DUHM3/H is to store the devices in a dry, cool place, with a relative humidity of 50% or less, and at a temperature range of 5°C to 30°C. It's also recommended to use a moisture barrier bag or a dry pack to prevent moisture absorption.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V8KM60DUHM3/H Overview

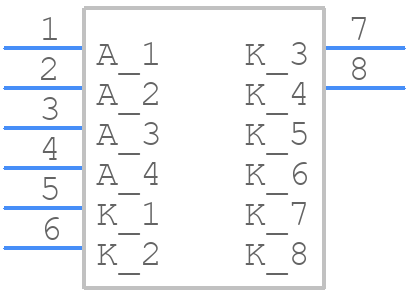

Use the download button to access the V8KM60DUHM3/H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V8KM6,
or try a keyword search, such as Rectifier Diodes
