V8KM60DUHM3/I - Vishay

Description: Schottky Diodes & Rectifiers 60V 4A dual TMBS AEC-Q101 Qualified

Download V8KM60DUHM3/I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

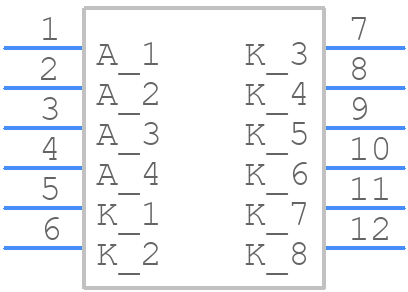

V8KM60DUHM3/I - Vishay - PCB symbol
click to zoom
PCB Footprints
V8KM60DUHM3/I - Vishay PCB footprint - Other - Other - FlatPAK 5 x 6_2022-1
click to zoom
3D Models
V8KM60DUHM3/I - Vishay - 3D model - Other - FlatPAK 5 x 6_2022-1
click to zoom

V8KM60DUHM3/I Details

  • Manufacturer Part Number:

    V8KM60DUHM3/I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    5 Weeks

  • Date Of Intro:

    2018-04-22

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.22

  • Additional Feature:

    FREE WHEELING DIODE, LOW POWER LOSS

  • Application:

    EFFICIENCY

  • Case Connection:

    CATHODE

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.64 V

  • JESD-30 Code:

    R-PDSO-F6

  • Non-rep Pk Forward Current-Max:

    80 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    60 V

  • Reverse Current-Max:

    300 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

V8KM60DUHM3/I Frequently Asked Questions (FAQs)

  • The recommended land pattern for the V8KM60DUHM3/I can be found in the Vishay Intertechnologies' application note AN483, which provides guidelines for surface-mount assembly of Vishay's resistors.
  • To prevent damage, handle the component by the body, avoid touching the termination areas, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).
  • The maximum allowable voltage derating for the V8KM60DUHM3/I is typically 50% of the rated voltage, but it's recommended to consult with Vishay's application engineers or the datasheet for specific derating guidelines.
  • The V8KM60DUHM3/I is a general-purpose resistor, and its high-frequency performance may not be suitable for high-frequency applications. For high-frequency applications, consider using specialized resistors designed for high-frequency use, such as thin-film or wirewound resistors.
  • To determine the power rating at elevated temperatures, use the derating curve provided in the datasheet or consult with Vishay's application engineers. The power rating will decrease as the temperature increases.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V8KM60DUHM3/I Overview

Use the download button to access the V8KM60DUHM3/I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V8KM6, or try a keyword search, such as Rectifier Diodes
