V8PA6HM3/I - Vishay

Description: Schottky Diodes & Rectifiers If 8A Vrrm 60V AEC-Q101 Qualified

Download V8PA6HM3/I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
V8PA6HM3/I - Vishay - PCB symbol
click to zoom
PCB Footprints

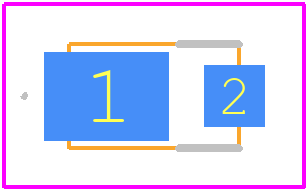

V8PA6HM3/I - Vishay PCB footprint - Other - Other - V8PA6HM3/I-3
click to zoom
3D Models
V8PA6HM3/I - Vishay - 3D model - Other - V8PA6HM3/I-3
click to zoom

V8PA6HM3/I Details

  • Manufacturer Part Number:

    V8PA6HM3/I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    5 Weeks

  • Date Of Intro:

    2016-07-18

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.22

  • Additional Feature:

    FREE WHEELING DIODE, LOW POWER LOSS

  • Application:

    EFFICIENCY

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.63 V

  • JEDEC-95 Code:

    DO-221BC

  • JESD-30 Code:

    R-PDSO-F2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    100 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    60 V

  • Reverse Current-Max:

    600 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

V8PA6HM3/I Frequently Asked Questions (FAQs)

  • The recommended land pattern for the V8PA6HM3/I is a rectangle with a length of 2.5mm and a width of 1.5mm, with a thermal pad in the center.
  • To ensure reliability in high-temperature applications, it is recommended to derate the power dissipation of the V8PA6HM3/I according to the temperature derating curve provided in the datasheet, and to ensure good thermal management through the use of a heat sink or thermal interface material.
  • Yes, the V8PA6HM3/I is suitable for high-frequency applications up to 1 GHz. However, it is recommended to evaluate the device's performance in the specific application and to consider the effects of parasitic inductance and capacitance.
  • To prevent damage, it is recommended to handle the V8PA6HM3/I by the body of the device, avoiding touching the leads or the die. The device should be stored in a dry, cool place, away from direct sunlight and moisture.
  • Yes, the V8PA6HM3/I requires a soldering temperature of 260°C (500°F) for a maximum of 10 seconds. It is recommended to use a solder with a melting point of 180°C (356°F) or higher.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V8PA6HM3/I Overview

Use the download button to access the V8PA6HM3/I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V8PA6, or try a keyword search, such as Rectifier Diodes
