VBI211 - Cinch Connectivity Solutions

Description: BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder

Download VBI211 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

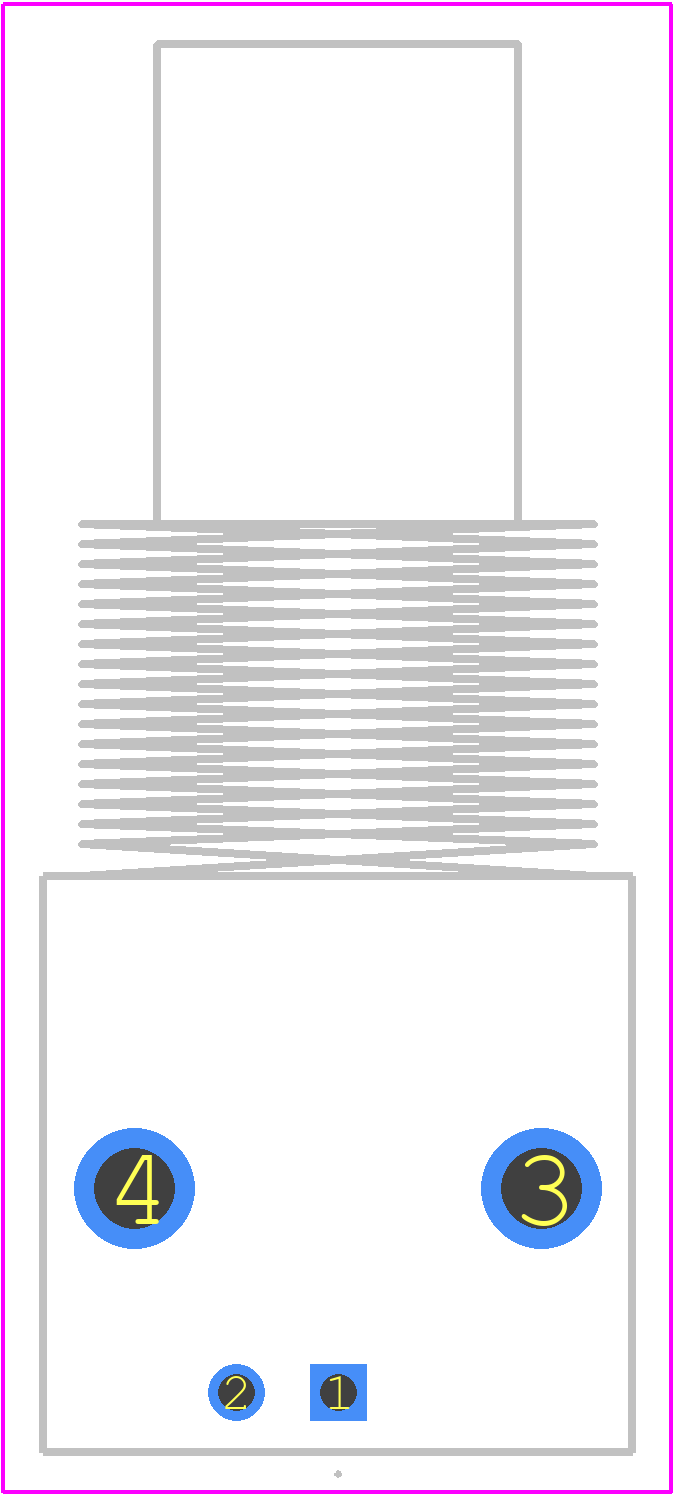

VBI211 - Cinch Connectivity Solutions PCB footprint - Other - Other - VBI211-5
click to zoom
3D Models
VBI211 - Cinch Connectivity Solutions  - 3D model - Other - VBI211-5
click to zoom

VBI211 Details

  • Manufacturer Part Number:

    VBI211

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Cinch Connectivity Solutions

  • YTEOL:

    7.55

  • Additional Feature:

    INSERTION LOSS MAX AT 3 GHZ

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Loss:

    0.2 dB

  • Insulator Material:

    POLYPROPYLENE

  • MIL Conformance:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Operating Frequency-Max:

    4 GHz

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    YES

  • Termination Type:

    SOLDER

  • VSWR:

    1.3

VBI211 Frequently Asked Questions (FAQs)

  • Cinch Connectivity Solutions provides a recommended PCB layout and footprint for the VBI211 connector in their application notes and design guides. It's essential to follow these guidelines to ensure proper mating and unmating of the connector, as well as to prevent damage to the PCB or the connector itself.
  • To ensure reliable connections and prevent fretting corrosion, it's crucial to follow proper termination and assembly procedures, including using the recommended torque values and cleaning the contacts before mating. Additionally, applying a contact lubricant or coating can help reduce fretting corrosion.
  • The VBI211 connector is rated for operation in temperatures ranging from -55°C to 125°C. However, it's essential to note that the operating temperature range may vary depending on the specific application and environmental conditions.
  • Yes, the VBI211 connector is designed to withstand high-vibration and high-shock environments. However, it's crucial to follow proper mounting and securing procedures to ensure the connector remains securely fastened to the PCB or chassis.
  • The VBI211 connector is designed to provide some level of EMI/RFI shielding, but additional shielding measures may be required depending on the specific application and environmental conditions. It's recommended to consult with a qualified engineer or the manufacturer's application notes for guidance on EMI/RFI shielding requirements.
