VBT10202C-M3/4W - Vishay

Description: Schottky Diodes & Rectifiers 10A 200V Trench Stky Rectifier

Download VBT10202C-M3/4W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

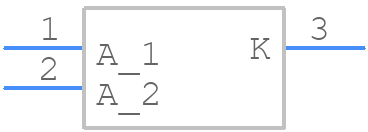

Symbol
VBT10202C-M3/4W - Vishay - PCB symbol
click to zoom

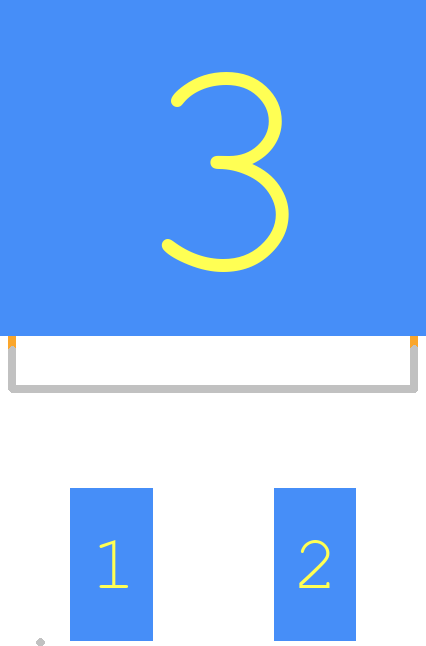

PCB Footprints
VBT10202C-M3/4W - Vishay PCB footprint - Other - Other - TO-263AB_1
click to zoom
3D Models
VBT10202C-M3/4W - Vishay - 3D model - Other - TO-263AB_1
click to zoom

VBT10202C-M3/4W Details

  • Manufacturer Part Number:

    VBT10202C-M3/4W

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.45

  • Additional Feature:

    FREE WHEELING DIODE, LOW POWER LOSS

  • Application:

    EFFICIENCY

  • Case Connection:

    CATHODE

  • Configuration:

    COMMON CATHODE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.88 V

  • JEDEC-95 Code:

    TO-263AB

  • JESD-30 Code:

    R-PSSO-G2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    100 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Rep Pk Reverse Voltage-Max:

    200 V

  • Reverse Current-Max:

    150 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

VBT10202C-M3/4W Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for VBT10202C-M3/4W is a rectangular pad with dimensions of 1.3 mm x 0.8 mm, with a 0.5 mm radius corner and a 0.2 mm spacing between pads.
  • While the datasheet specifies an operating temperature range of -55°C to 150°C, it's recommended to derate the power rating by 1.5% per degree above 125°C to ensure reliable operation in high-temperature environments.
  • To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a soldering flux that is compatible with the component's lead-free finish. Avoid applying excessive force or pressure during soldering.
  • Yes, VBT10202C-M3/4W is compatible with wave soldering, but it's recommended to use a soldering temperature of 250°C to 260°C and a soldering time of 3 to 5 seconds to prevent damage to the component.
  • Store VBT10202C-M3/4W in a dry, cool place with a relative humidity of 50% or less, and avoid exposing it to direct sunlight, moisture, or extreme temperatures.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VBT10202C-M3/4W Overview

Use the download button to access the VBT10202C-M3/4W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VBT10, or try a keyword search, such as Rectifier Diodes
