VC0201500000G - Amphenol

Description: 2 Position Terminal Block Header, Blade Pins, Shrouded (4 Side) 0.300" (7.62mm) 90°, Right Angle Through Hole

Download VC0201500000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VC0201500000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

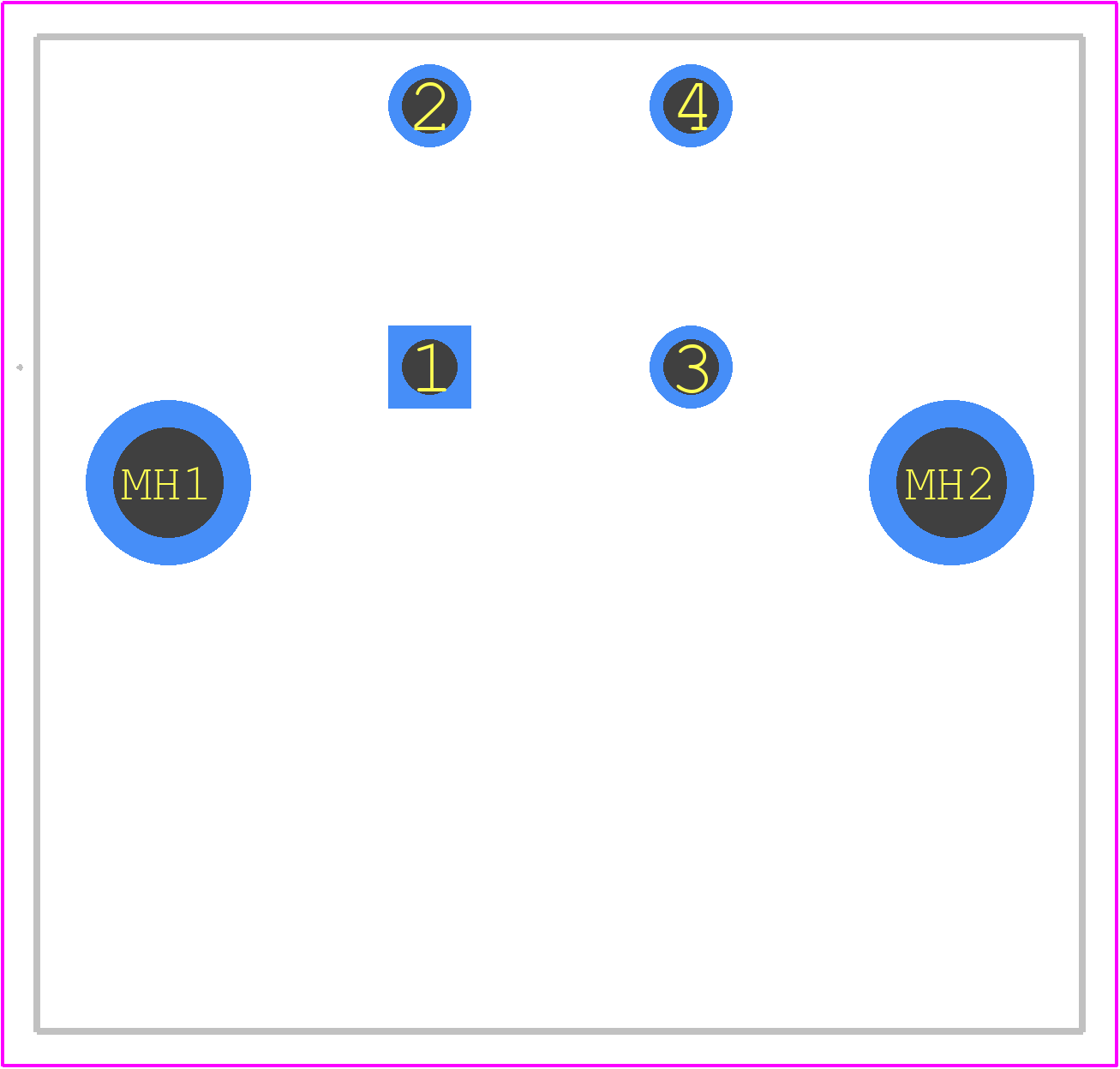

VC0201500000G - Amphenol PCB footprint - Other - Other - VC0201500000G-4
click to zoom
3D Models
VC0201500000G - Amphenol - 3D model - Other - VC0201500000G-4
click to zoom

VC0201500000G Details

  • Manufacturer Part Number:

    VC0201500000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7.96

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    32 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; TUV; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

VC0201500000G Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw threads is 10-12 in-lbs (1.1-1.4 Nm) to ensure proper mating and prevent damage to the connector.
  • Yes, the VC0201500000G is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-55302F, which includes sinusoidal vibration testing at 10-2000 Hz, 20 G peak acceleration.
  • Yes, the VC0201500000G is designed to operate in harsh environments. It has a temperature range of -55°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended derating guidelines for high-temperature applications.
  • The VC0201500000G has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
  • The VC0201500000G is designed to be compatible with other manufacturers' mating connectors that meet the MIL-DTL-55302F standard. However, it's recommended to verify compatibility and perform testing before using connectors from different manufacturers.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VC0201500000G Overview

Use the download button to access the VC0201500000G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VC020, or try a keyword search, such as Terminals and Terminal Blocks

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
