VCA2615RGZR - Texas Instruments

Description: Special Purpose Amplifiers 2-Channel Variable Gain Amplifier

Download VCA2615RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

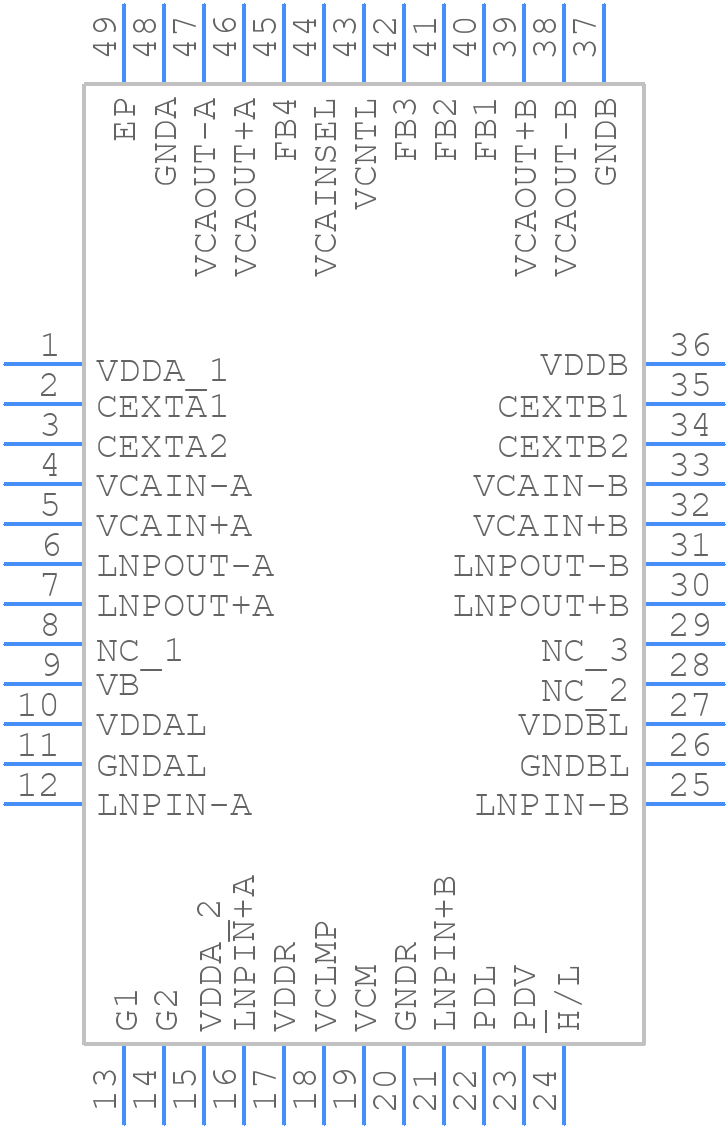

VCA2615RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
VCA2615RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048A 2021
click to zoom
3D Models
VCA2615RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048A 2021
click to zoom

VCA2615RGZR Details

  • Manufacturer Part Number:

    VCA2615RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

VCA2615RGZR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the VCA2615RGZR is 1.65V to 3.6V, with a typical voltage of 1.8V or 2.5V.
  • The VCA2615RGZR has a programmable gain amplifier (PGA) that can be configured using the GAIN[2:0] pins. The gain setting can be selected by connecting these pins to VDD, VSS, or leaving them open. Refer to the datasheet for the specific gain settings and pin configurations.
  • The maximum input voltage range for the VCA2615RGZR is ±1.5V, with a typical input voltage range of ±1V. Exceeding this range may result in signal distortion or device damage.
  • To reduce noise and interference, ensure proper PCB layout, use a low-ESR capacitor for power supply decoupling, and add a 10nF to 100nF capacitor between the input pins and ground. Additionally, use a shielded cable for input signals and keep the circuit away from high-frequency sources.
  • The typical power consumption of the VCA2615RGZR is 1.2mA at 1.8V supply voltage, with a maximum current consumption of 2.5mA. However, this value may vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VCA2615RGZR Overview

Use the download button to access the VCA2615RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VCA26, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
