FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
235 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
3.15 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
14 mm
VCA5807PZP Frequently Asked Questions (FAQs)
A good PCB layout for the VCA5807PZP involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for power supply decoupling.
To ensure proper power supply and decoupling, use a low-ESR capacitor (e.g., 10uF) between the VCC and GND pins, and a 0.1uF capacitor between the AVCC and AGND pins. Also, ensure that the power supply voltage is within the recommended range of 2.7V to 5.5V.
The maximum input voltage that the VCA5807PZP can handle is 5.5V. Exceeding this voltage may cause damage to the device. It's recommended to use input voltage limiting resistors or voltage dividers to ensure the input voltage remains within the recommended range.
To optimize noise performance, use a low-noise power supply, keep the analog input traces short and away from digital signals, and use a capacitor (e.g., 10nF) between the analog input pins and GND. Additionally, consider using a noise-reducing filter or a low-pass filter at the output.
The recommended clock frequency for the VCA5807PZP is between 10kHz and 50kHz. However, the device can operate at frequencies up to 100kHz, depending on the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VCA5807PZP Overview

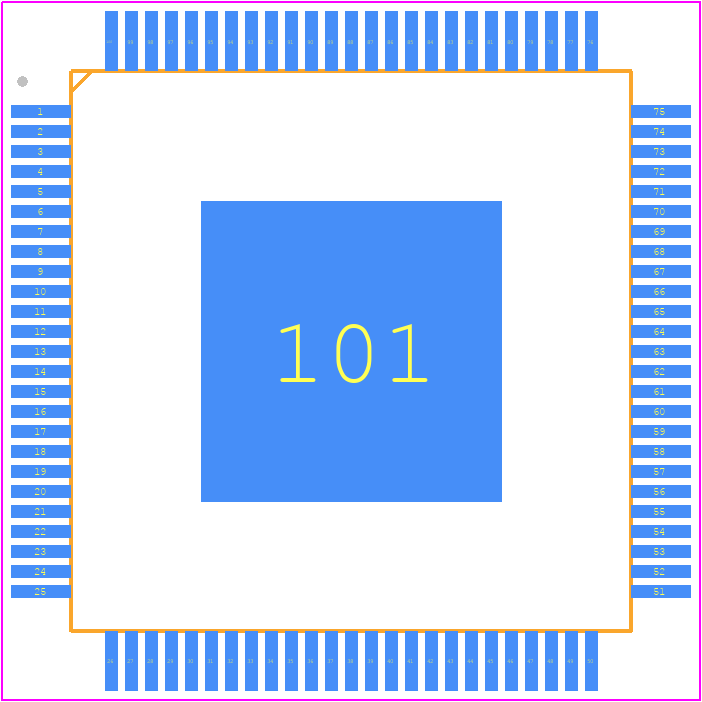

Use the download button to access the VCA5807PZP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VCA58,
or try a keyword search, such as Other Signal Circuits
