Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good analog design practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the input and output traces are short and direct to minimize signal degradation.
The gain setting depends on the specific application requirements. The VCA820IDGST has a gain range of -10 dB to 30 dB. To optimize the gain setting, consider the input signal amplitude, desired output amplitude, and the noise floor of your system. You may need to experiment with different gain settings to find the optimal value for your application.
The maximum input signal amplitude is not explicitly stated in the datasheet, but it's generally recommended to keep the input signal amplitude below 2 Vpp to avoid clipping and ensure linear operation. However, the actual maximum input signal amplitude may vary depending on the specific application and operating conditions.
The VCA820IDGST has a high common-mode rejection ratio (CMRR) of 80 dB, which helps to reject common-mode noise and interference. However, it's still essential to follow good design practices, such as using a common-mode choke or a differential amplifier, to minimize common-mode noise and ensure optimal performance.
The power-down mode is a feature that allows the VCA820IDGST to enter a low-power state, reducing power consumption to approximately 1 μA. To enter power-down mode, pull the EN pin low. This can be useful in battery-powered applications or when the device is not in use. However, note that the device will take some time to recover from power-down mode, so ensure that the EN pin is held low for a sufficient duration.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VCA820IDGST Overview

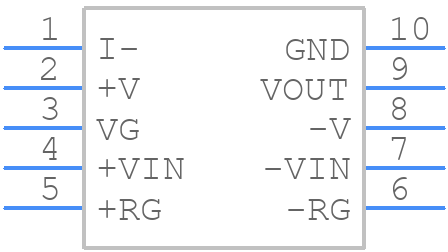

Use the download button to access the VCA820IDGST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VCA82,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
