The recommended operating voltage range for the VCA824IDR is 2.7V to 5.5V, although it can operate down to 2.3V with reduced performance.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input voltage (VIN) is within the recommended range and the output voltage (VOUT) is properly terminated.
The maximum output current capability of the VCA824IDR is 100mA per channel, although it's recommended to limit the output current to 50mA per channel for optimal performance and to prevent overheating.
To minimize noise and distortion, use a low-noise power supply, decouple the VCC pin with a 0.1uF capacitor, and use a high-quality audio capacitor (e.g., film or ceramic) for the input and output coupling. Additionally, ensure the PCB layout is well-designed to minimize electromagnetic interference (EMI).
Yes, the VCA824IDR can be used as a headphone amplifier, but it's essential to consider the output power and impedance requirements of the headphones. The VCA824IDR can drive headphones with an impedance of 16 ohms or higher, but it may not be suitable for low-impedance headphones.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VCA824IDR Overview

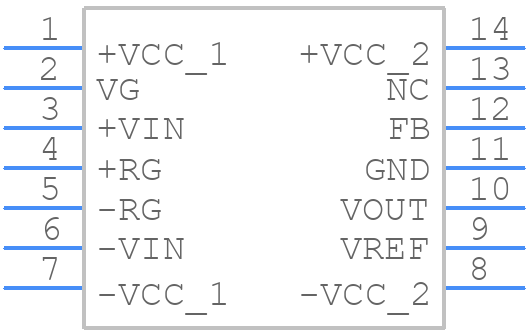

Use the download button to access the VCA824IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VCA82,
or try a keyword search, such as Other Signal Circuits
