The maximum capacitance load for the VCE10US24 is 0.1uF to 10uF, depending on the input voltage and output voltage. It's recommended to consult with XP Power's application engineers for specific guidance.
The VCE10US24 is rated for operation up to 80°C ambient temperature, with derating required above 60°C. For high-temperature applications, XP Power offers other models with higher temperature ratings, such as the VCE10US24H which is rated up to 100°C.
The VCE10US24 is not certified for use in hazardous locations. However, XP Power offers other models that are certified for use in Class I, Division 2 hazardous locations, such as the VCE10US24EX.
Yes, the VCE10US24 can be connected in parallel to increase the output power, but it's recommended to consult with XP Power's application engineers to ensure proper configuration and to avoid any potential issues with synchronization and stability.
The typical efficiency of the VCE10US24 is around 80-85%, depending on the input voltage, output voltage, and load conditions. For specific efficiency data, please consult the datasheet or contact XP Power's technical support.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VCE10US24 Overview

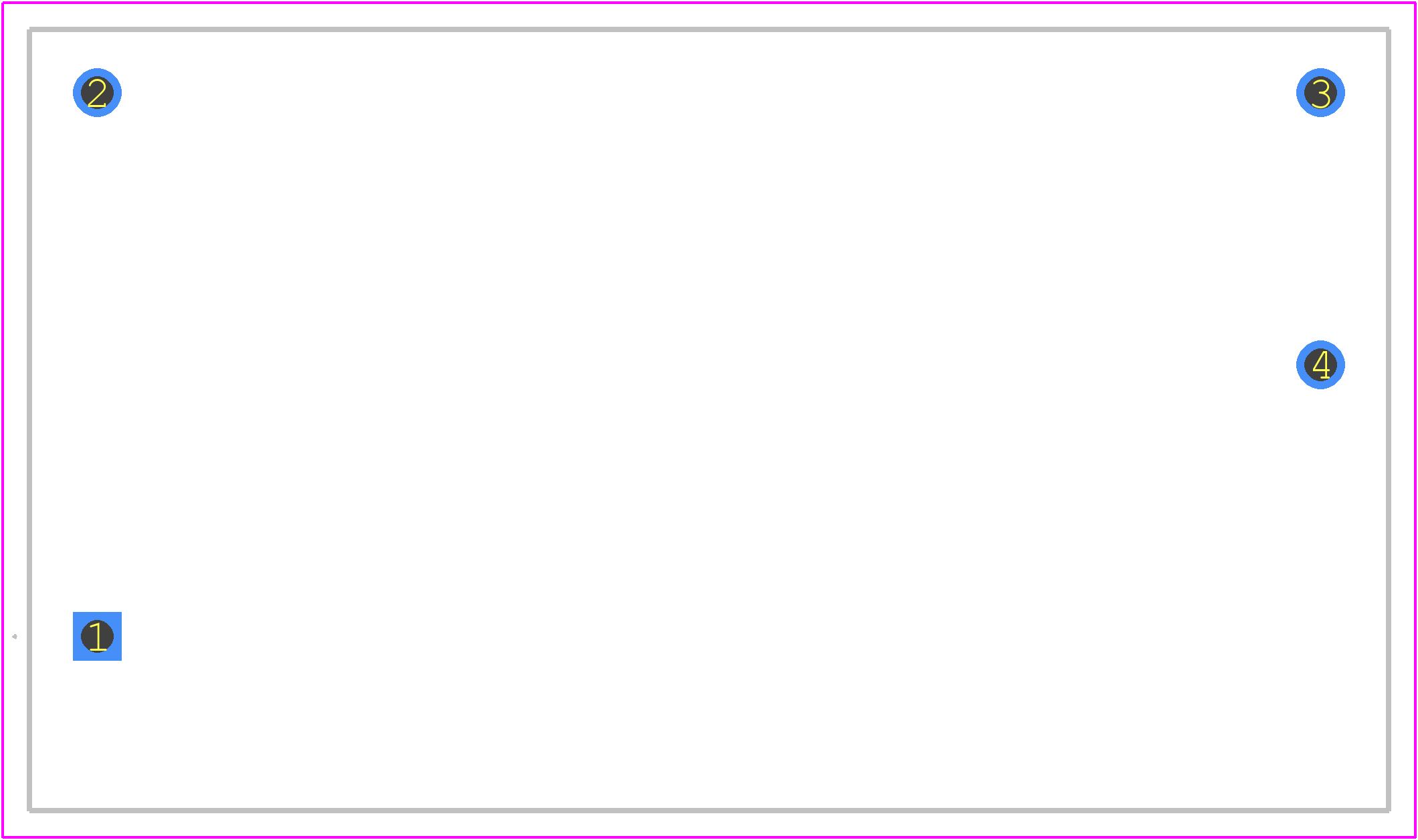

Use the download button to access the VCE10US24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VCE10,
or try a keyword search, such as Power Supply Modules
