VCE20US12 - XP POWER

Description: Switching Power Supplies AC-DC, 20W, PCB MOUNT, ITE & HOUSEHOLD

Download VCE20US12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VCE20US12 - XP POWER - PCB symbol
click to zoom
PCB Footprints

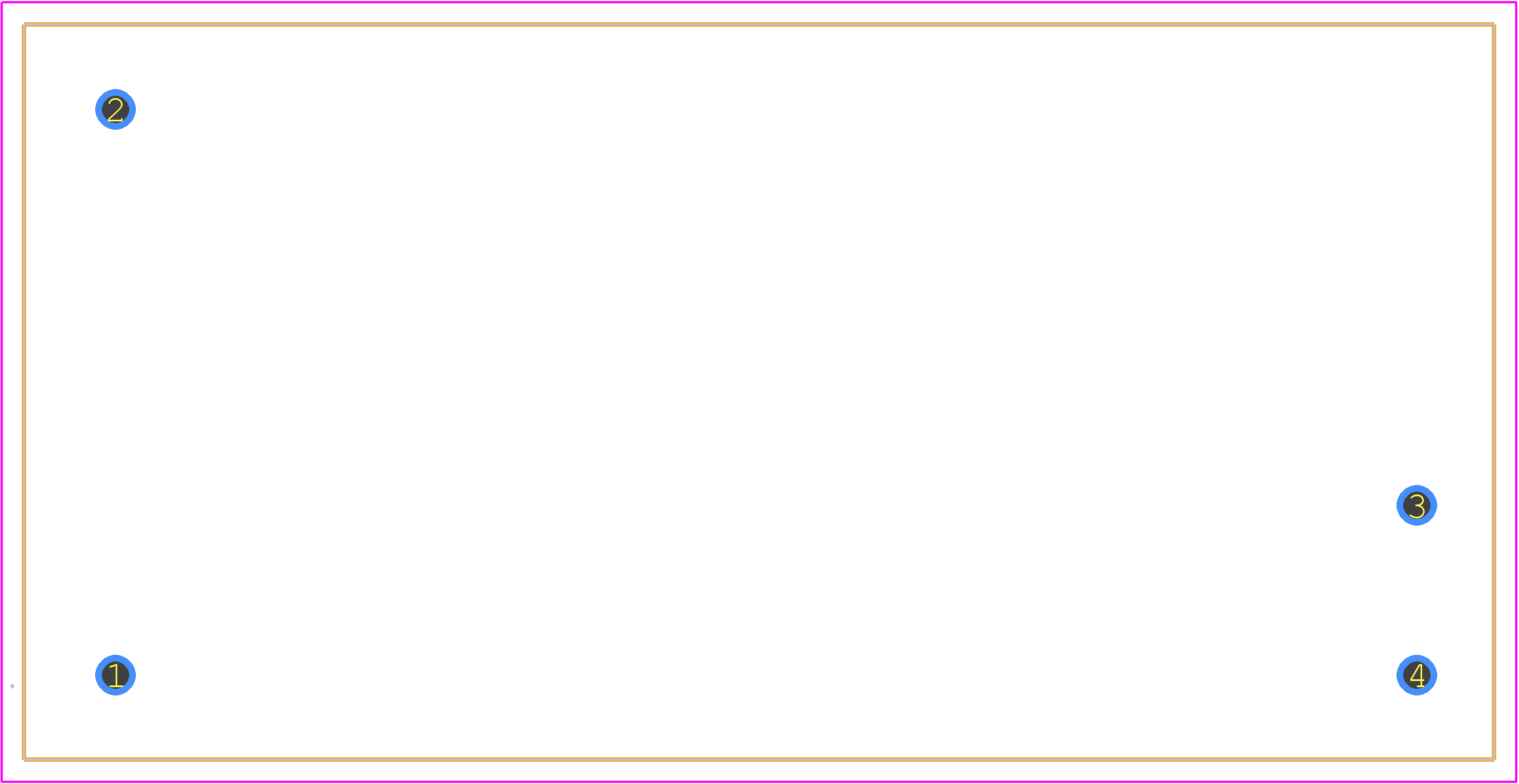

VCE20US12 - XP POWER PCB footprint - Other - Other - VCE20US12-2
click to zoom
3D Models
VCE20US12 - XP POWER - 3D model - Other - VCE20US12-2
click to zoom

VCE20US12 Details

  • Manufacturer Part Number:

    VCE20US12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-4

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CB, CE, EN, IEC, TUV, UKCA, UL

  • Efficiency (Main Output):

    85%

  • Input Voltage-Max:

    305 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-XDMA-P4

  • Length:

    66 mm

  • Line Regulation-Max:

    1%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    1.67 A

  • Output Voltage-Max:

    12.12 V

  • Output Voltage-Min:

    11.88 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,4LEAD,2.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER LOAD, OVER VOLTAGE, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.042 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    23.9 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    20 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    2.035 s

  • Width:

    33 mm

VCE20US12 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the VCE20US12 is 0.1uF to 10uF, depending on the input voltage and output voltage. It's recommended to consult the application notes or contact XP Power support for specific guidance.
  • The VCE20US12 has a standard operating temperature range of -40°C to +85°C. However, it can be derated for high-temperature applications. Consult the datasheet or contact XP Power support for derating guidelines.
  • The VCE20US12 meets the requirements for 2xMOPP (Means of Patient Protection) and is suitable for medical applications. However, it's essential to ensure that the specific application meets the relevant medical safety standards, such as IEC 60601-1.
  • The VCE20US12 is designed to withstand moderate vibration levels. However, for high-vibration applications, it's recommended to consult the application notes or contact XP Power support for specific guidance on vibration testing and derating.
  • XP Power provides application notes and PCB layout recommendations for the VCE20US12. It's essential to follow these guidelines to ensure proper thermal management and minimize electromagnetic interference (EMI).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VCE20US12 Overview

Use the download button to access the VCE20US12 schematic symbol, PCB footprint, and 3D model.
