The recommended PCB layout for the VCNL3020-GS18 involves keeping the sensor away from high-frequency signals and power lines, using a ground plane under the sensor, and minimizing the distance between the sensor and the microcontroller. A 4-layer PCB with a dedicated ground plane is recommended.
Calibration involves adjusting the sensor's sensitivity and threshold settings to optimize its performance in the specific application. This can be done by measuring the sensor's output in different proximity scenarios and adjusting the settings accordingly. Vishay provides a calibration guide and software tools to assist with this process.
The VCNL3020-GS18 can handle ambient light intensities up to 100,000 lux, making it suitable for use in outdoor and high-brightness applications. However, the sensor's performance may degrade at very high light intensities, and additional filtering or shielding may be necessary.
Yes, the VCNL3020-GS18 can be used for gesture recognition applications. Its high sensitivity and fast response time make it suitable for detecting hand or finger movements. However, additional processing and algorithms are required to interpret the sensor data and recognize specific gestures.
Yes, the VCNL3020-GS18 is compatible with I2C bus stretching, which allows the sensor to operate with microcontrollers that have limited I2C clock speed capabilities. This feature enables the sensor to work with a wide range of microcontrollers and systems.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VCNL3020-GS18 Overview

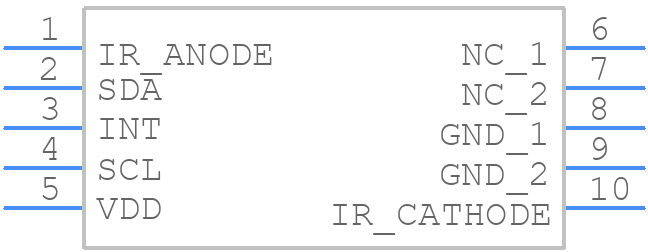

Use the download button to access the VCNL3020-GS18 schematic symbol, PCB footprint, and 3D model.
