The recommended PCB layout for the VCNL36821S involves keeping the sensor away from other components, using a ground plane underneath the sensor, and minimizing the distance between the sensor and the PCB surface. A good layout can help reduce noise and improve sensor performance.
Calibration of the VCNL36821S involves adjusting the sensor's sensitivity and threshold settings to suit the specific application. This can be done through the sensor's I2C interface using a microcontroller or a dedicated calibration tool. The datasheet provides guidelines for calibration, but the exact process may vary depending on the specific use case.
The maximum distance that the VCNL36821S can detect objects depends on various factors such as the object's reflectivity, size, and shape, as well as the sensor's sensitivity and threshold settings. In general, the sensor can detect objects up to 20 cm away, but this distance can be increased or decreased depending on the specific application and calibration.
The VCNL36821S has built-in ambient light rejection capabilities, which help to minimize the impact of ambient light on the sensor's performance. The sensor uses a proprietary algorithm to distinguish between ambient light and the light reflected from the object being detected. However, in very high-ambient-light environments, additional filtering or shielding may be necessary to ensure accurate detection.
While the VCNL36821S is designed for indoor applications, it can be used in outdoor applications with some precautions. The sensor's performance may be affected by direct sunlight, so it's essential to provide adequate shielding or filtering to minimize the impact of sunlight. Additionally, the sensor's operating temperature range should be considered when designing for outdoor use.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
VCNL36821S Overview

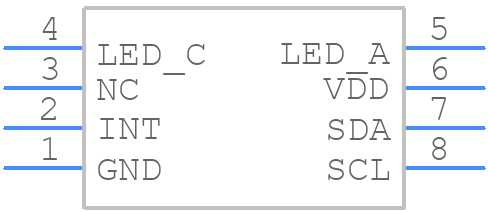

Use the download button to access the VCNL36821S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VCNL3,
or try a keyword search, such as Photo ICs
