VDMG10A0 footprint, schematic symbol and 3D model by Vishay

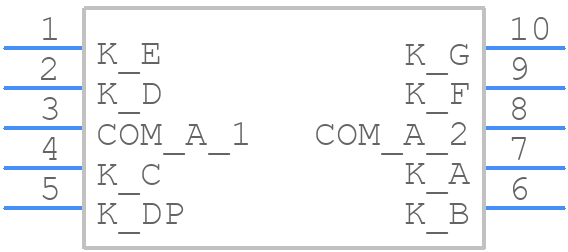

Symbol

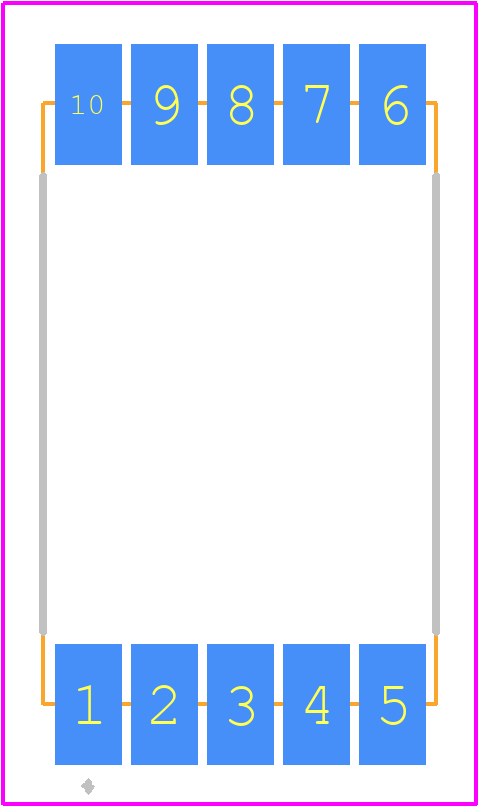

PCB Footprints

3D Models

VDMG10A0 Details

The recommended PCB footprint for the VDMG10A0 is a rectangular pad with a size of 1.5 mm x 0.8 mm, with a thermal via connecting to a larger copper area for heat dissipation.
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pad. Avoid applying excessive force or pressure during soldering.
The maximum allowed voltage derating for the VDMG10A0 is 80% of the maximum rated voltage, which is 10 V. Therefore, the maximum allowed voltage derating is 8 V.
To handle ESD protection for the VDMG10A0, use an ESD wrist strap or mat, and ensure that the PCB and components are properly grounded. Avoid touching the component pins or PCB traces to prevent ESD damage.
The recommended storage condition for the VDMG10A0 is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. Avoid exposing the component to direct sunlight or moisture.

Expert Contribution

System Verified

Community Approved

Use the download button to access the VDMG10A0 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like VDMG1, or try a keyword search, such as LED Displays
