VDMG10C0 - Vishay

VDMG10C0 Frequently Asked Questions (FAQs)

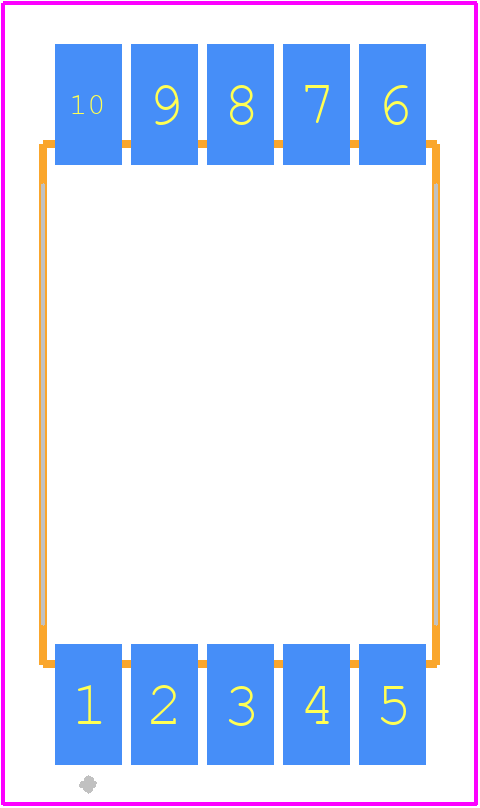

• What is the recommended PCB footprint for VDMG10C0?
  The recommended PCB footprint for VDMG10C0 is a rectangular pad with a minimum size of 2.5 mm x 1.5 mm, with a 0.5 mm radius corner and a 0.3 mm spacing between pads.
• Can I use VDMG10C0 in high-temperature applications?
  Yes, VDMG10C0 is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the device is properly derated and that the PCB and surrounding components can withstand the high temperatures.
• How do I ensure reliable soldering of VDMG10C0?
  To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste or flux to the pads. Avoid applying excessive heat or pressure, which can damage the device.
• Is VDMG10C0 compatible with lead-free soldering processes?
  Yes, VDMG10C0 is compatible with lead-free soldering processes, such as SAC305 or Sn96.5Ag3Cu0.5. However, it's essential to follow the recommended soldering profile and ensure that the PCB and surrounding components are compatible with lead-free soldering.
• What is the typical power dissipation of VDMG10C0?
  The typical power dissipation of VDMG10C0 is around 1 W, but it can vary depending on the specific application and operating conditions. It's essential to ensure that the device is properly heat-sinked and that the PCB is designed to handle the expected power dissipation.
