VDMO10A0 - Vishay

VDMO10A0 Frequently Asked Questions (FAQs)

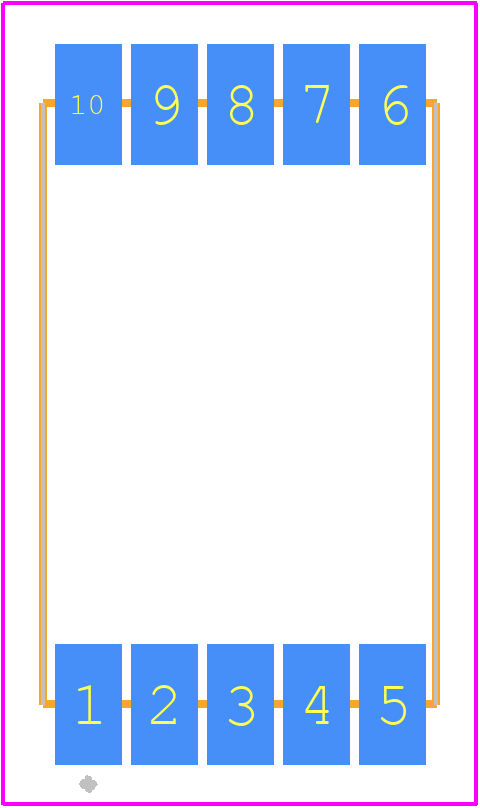

• What is the recommended PCB footprint for VDMO10A0?
  The recommended PCB footprint for VDMO10A0 is a rectangular pad with a minimum size of 1.5 mm x 2.5 mm, with a 0.5 mm radius corner and a 0.3 mm spacing between pads.
• How do I ensure reliable soldering of VDMO10A0?
  To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a soldering flux compatible with the component's terminations. Avoid excessive soldering time and temperature to prevent damage to the component.
• What is the maximum allowed voltage derating for VDMO10A0?
  The maximum allowed voltage derating for VDMO10A0 is 80% of the rated voltage, which is 10 A x 0.8 = 8 A. This ensures reliable operation and prevents overheating.
• Can I use VDMO10A0 in high-frequency applications?
  While VDMO10A0 is suitable for high-frequency applications, its performance may degrade above 100 kHz due to internal capacitance and inductance. For high-frequency applications, consider using a more specialized component or consulting with a Vishay application engineer.
• How do I handle ESD protection when handling VDMO10A0?
  To prevent electrostatic discharge (ESD) damage, handle VDMO10A0 components with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that the workspace and personnel are grounded to prevent static electricity buildup.
