VE-100M1HTR-0505 - Lelon

Description: Aluminium Electrolytic Capacitors - SMD 50 Volts 10uF 20% 5x5.3

Download VE-100M1HTR-0505 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VE-100M1HTR-0505 - Lelon - PCB symbol
click to zoom

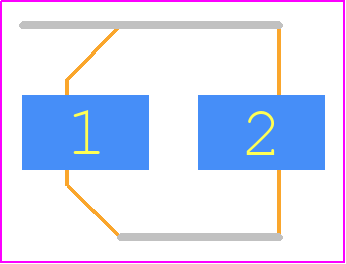

PCB Footprints
VE-100M1HTR-0505 - Lelon PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 5X5.3*
click to zoom
3D Models
VE-100M1HTR-0505 - Lelon - 3D model - Capacitor Al Electrolytic - 5X5.3*
click to zoom

VE-100M1HTR-0505 Details

  • Manufacturer Part Number:

    VE-100M1HTR-0505

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Lelon Electronics Corp

  • YTEOL:

    0

  • Capacitance:

    10 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    5.3 mm

  • Leakage Current:

    0.005 mA

  • Length:

    5.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    35 mA

  • Size Code:

    2121

  • Surface Mount:

    YES

  • Tan Delta:

    0.1

  • Terminal Shape:

    FLAT

  • Width:

    5.3 mm

VE-100M1HTR-0505 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the VE-100M1HTR-0505 can be found in the Lelon Electronics Corp's application note or by contacting their technical support team.
  • The VE-100M1HTR-0505 has a thermal resistance of 10°C/W. To handle thermal management, ensure good airflow, use a heat sink if necessary, and follow proper PCB design guidelines for thermal dissipation.
  • The maximum operating temperature range for the VE-100M1HTR-0505 is -40°C to 125°C, as specified in the datasheet.
  • The VE-100M1HTR-0505 is designed to withstand vibrations up to 10G, but it's recommended to consult with Lelon Electronics Corp's technical support team for specific vibration requirements and potential customizations.
  • To ensure reliability, follow proper storage and handling procedures, use a clean and controlled manufacturing environment, and perform thorough testing and inspection according to Lelon Electronics Corp's guidelines.
