VE-JW3-CY footprint, schematic symbol and 3D model by VICOR

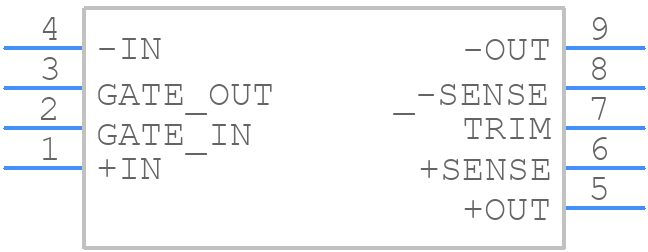

Symbol

click to zoom

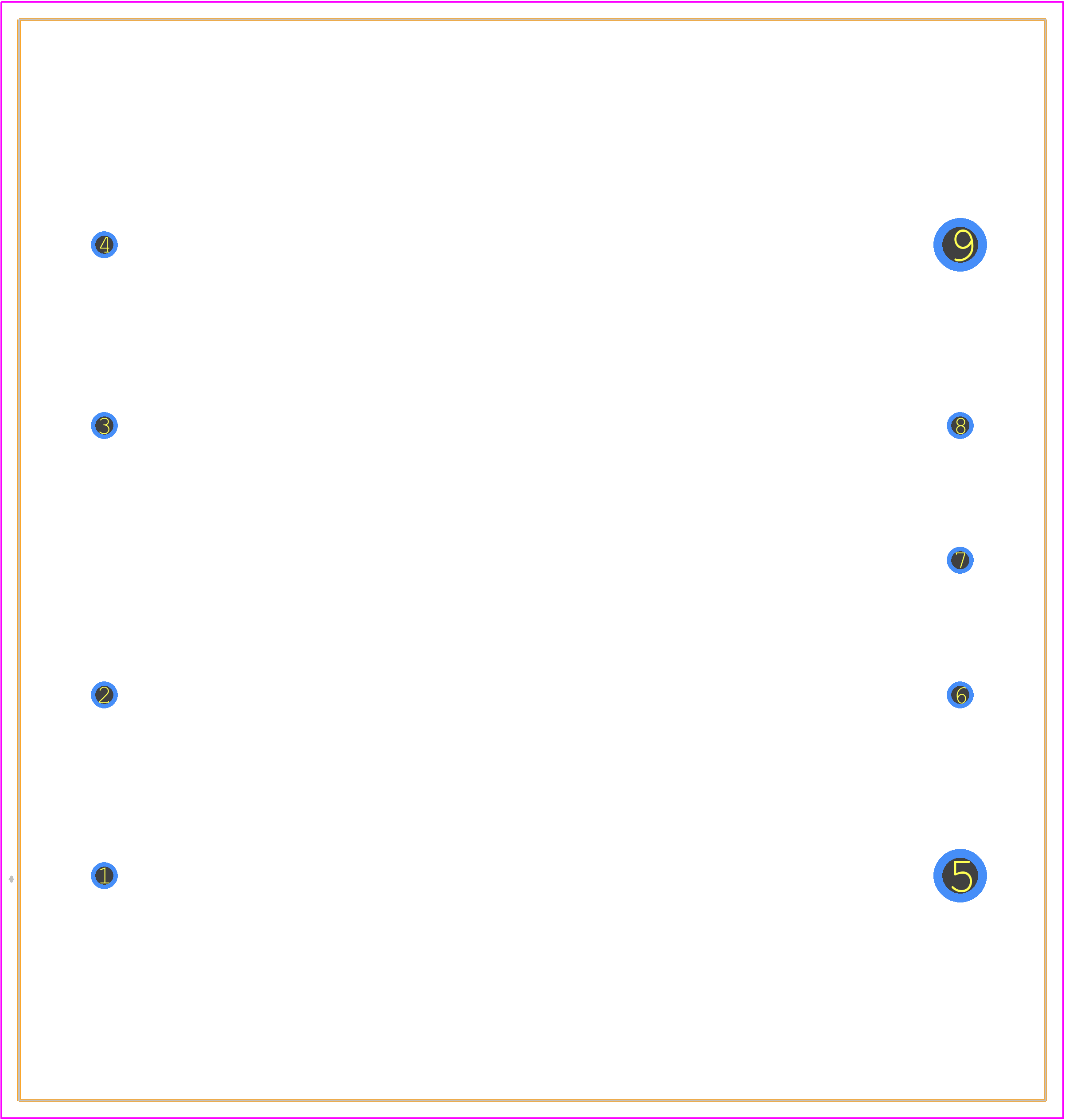

PCB Footprints

VE-JW3-CY - VICOR PCB footprint - Other - Other - VE-JW3-CY-1

click to zoom

3D Models

VE-JW3-CY - VICOR - 3D model - Other - VE-JW3-CY-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VE-JW3-CY
Part Number VE-JW3-CY
Manufacturer VICOR
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - VE-JW3-CY-1
Released Date May 2, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

VE-JW3-CY Details

Manufacturer Part Number:
VE-JW3-CY
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
Module-9
ECCN Code:
EAR99
Factory Lead Time:
22 Weeks
Manufacturer:
Vicor Corporation
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P9
JESD-609 Code:
e3
Length:
61 mm
Load Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-25 °C
Output Voltage-Max:
26.4 V
Output Voltage-Min:
12 V
Output Voltage-Nom:
24 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Qualification Status:
Not Qualified
Seated Height-Max:
13.46 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
50 W
Trim/Adjustable Output:
YES
Width:
57.9 mm

VE-JW3-CY Frequently Asked Questions (FAQs)

The maximum operating temperature range for the VE-JW3-CY is -40°C to +100°C, with a derating of 1.5% per °C above 80°C.
Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring that the module is mounted on a thermally conductive surface. Vicor recommends a minimum airflow of 200 LFM (linear feet per minute) and a maximum junction temperature of 125°C.
The recommended input voltage range for the VE-JW3-CY is 36-75 VDC, with a maximum input voltage of 80 VDC for short-term transients.
Yes, the VE-JW3-CY is designed to meet the requirements of high-reliability and military applications. Vicor offers a range of screening options, including burn-in, temperature cycling, and vibration testing, to ensure the module meets the required standards.
Vicor provides a range of troubleshooting resources, including application notes, technical notes, and FAQs. Engineers can also contact Vicor's technical support team for assistance with troubleshooting and fault diagnosis.

Trust Checks

Expert Contribution

System Verified

Community Approved

VE-JW3-CY Overview

Use the download button to access the VE-JW3-CY schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like VE-JW, or try a keyword search, such as Power Supply Modules
