VEMI65AC-HCI-GS08 - Vishay

Description: EMI Filter Low Pass RC-Circuit Flat Style SMD T/R

Download VEMI65AC-HCI-GS08 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

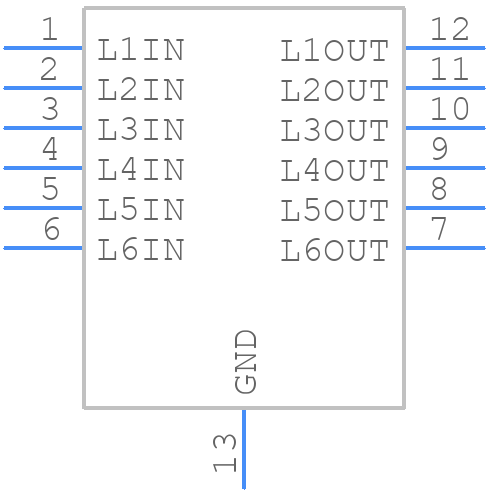

VEMI65AC-HCI-GS08 - Vishay - PCB symbol
click to zoom
PCB Footprints
VEMI65AC-HCI-GS08 - Vishay PCB footprint - Small Outline No-lead - Small Outline No-lead - LLP2513-13L
click to zoom
3D Models
VEMI65AC-HCI-GS08 - Vishay - 3D model - Small Outline No-lead - LLP2513-13L
click to zoom

VEMI65AC-HCI-GS08 Details

  • Manufacturer Part Number:

    VEMI65AC-HCI-GS08

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PART

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Approvals:

    UL; IEC

  • DC Resistance-Max:

    110 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • JESD-609 Code:

    e3

  • Length:

    2.55 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    6

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Terminal Finish:

    Matte Tin (Sn)

  • Width:

    1.4 mm

VEMI65AC-HCI-GS08 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for VEMI65AC-HCI-GS08 is -40°C to 125°C.
  • Yes, the VEMI65AC-HCI-GS08 is designed to operate in humid environments, but it's recommended to follow the recommended storage and operating conditions to ensure reliability.
  • The maximum allowable voltage for the VEMI65AC-HCI-GS08 is 65V, as specified in the datasheet. Exceeding this voltage may damage the component.
  • It's recommended to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, to prevent damage to the component.
  • Yes, the VEMI65AC-HCI-GS08 is AEC-Q101 qualified, making it suitable for use in automotive applications.
