Coilcraft provides a recommended land pattern for the VER2923-472KL in their datasheet, which includes a suggested pad layout and dimensions for optimal soldering and thermal performance.
The VER2923-472KL's inductance value can vary with temperature. To minimize this effect, ensure proper thermal management, use a thermally stable PCB material, and consider using a temperature-compensated inductor or a different inductor with a lower temperature coefficient.
The maximum current rating for the VER2923-472KL is not explicitly stated in the datasheet. However, you can calculate the maximum current based on the inductor's resistance, inductance, and core losses. Coilcraft's online tools or consulting with their application engineers can help with this calculation.
The VER2923-472KL is designed for frequencies up to 1 MHz. While it may be possible to use it at higher frequencies, the inductor's performance may degrade due to core losses and skin effect. Coilcraft offers other inductor series optimized for high-frequency applications.
Consult with Coilcraft's application engineers or use their online tools, such as the Coilcraft Inductor Selection Tool, to ensure the VER2923-472KL meets your specific application's requirements, including inductance, current, frequency, and other parameters.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VER2923-472KL Overview

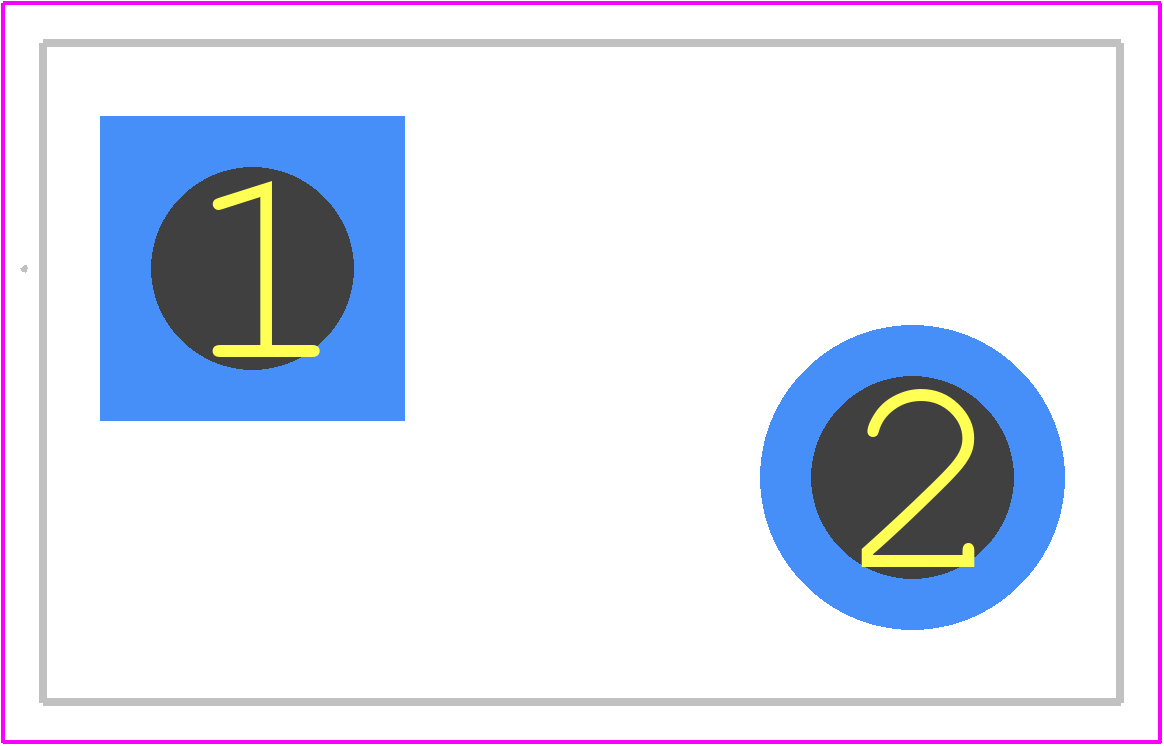

Use the download button to access the VER2923-472KL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VER29,
or try a keyword search, such as Fixed Inductors
