VER2923-682KL - COILCRAFT

Description: COILCRAFT - VER2923-682KL - INDUCTOR, PWR, 6.8UH, 26A,0.1, 50MHZ

Download VER2923-682KL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VER2923-682KL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

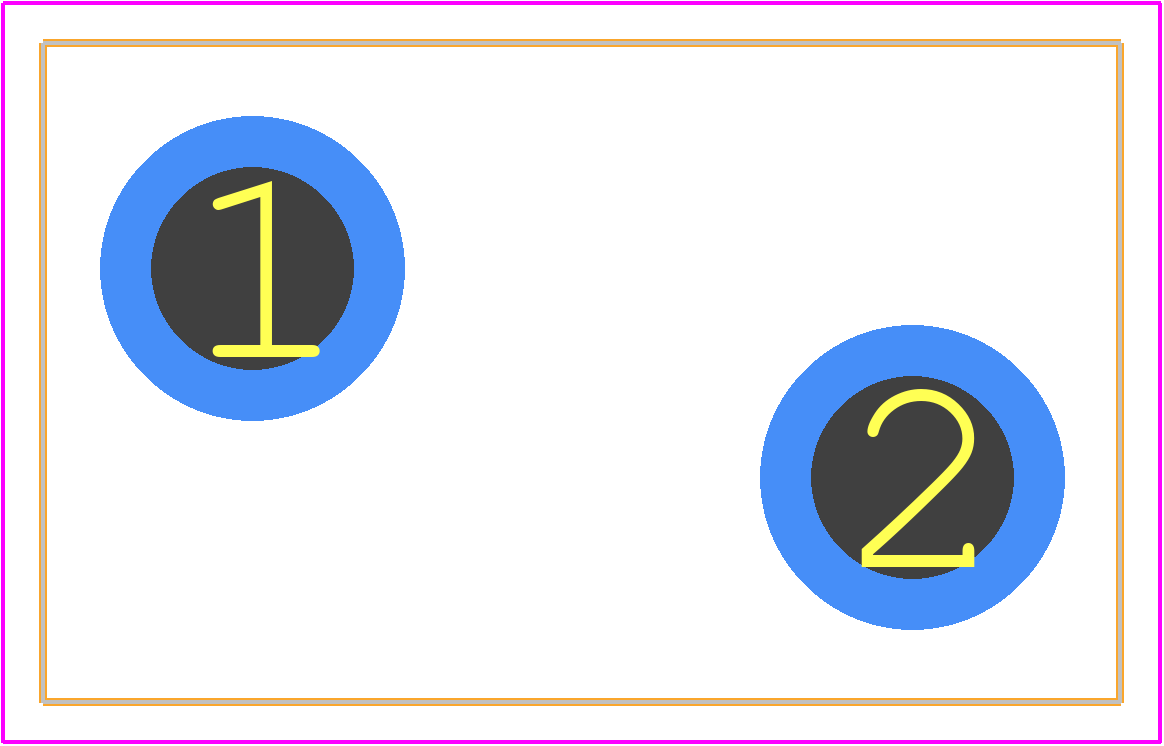

VER2923-682KL - COILCRAFT PCB footprint - Other - Other - VER2923-682KL-3
click to zoom
3D Models
VER2923-682KL - COILCRAFT - 3D model - Other - VER2923-682KL-3
click to zoom

VER2923-682KL Details

  • Manufacturer Part Number:

    VER2923-682KL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.6

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0026 Ω

  • Inductance-Nom (L):

    6.8 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Lead Length:

    3.3 mm

  • Lead Spacing:

    16.51 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    22.23 mm

  • Package Length:

    26.92 mm

  • Package Style:

    Radial

  • Package Width:

    16.46 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    26 A

  • Self Resonance Frequency:

    25 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    FLAT

  • Test Frequency:

    0.3 MHz

  • Tolerance:

    10%

VER2923-682KL Frequently Asked Questions (FAQs)

  • The recommended land pattern for the VER2923-682KL is a rectangular pad with a size of 2.5 mm x 1.6 mm, with a non-solder mask defined (NSMD) pad shape.
  • The VER2923-682KL is rated for operation up to 125°C, but it's recommended to derate the current rating for temperatures above 85°C. Consult the datasheet for specific derating guidelines.
  • The VER2923-682KL is a molded inductor, which makes it sensitive to moisture. To minimize the risk of moisture-related issues, store the components in a dry environment, and follow the recommended soldering profile to prevent moisture ingress during reflow.
  • The maximum allowable voltage for the VER2923-682KL is 50 V. Exceeding this voltage may cause damage to the component or affect its performance.
  • The VER2923-682KL is designed for use in high-frequency applications up to 1 GHz. However, the inductor's performance may degrade at frequencies above 500 MHz. Consult the datasheet for specific frequency response characteristics.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VER2923-682KL Overview

Use the download button to access the VER2923-682KL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VER29, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
