VF4-11F13 - TE Connectivity

Description: POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.133A (COIL), 12VDC (COIL), 1600MW (COIL), 40A (CONTACT), DC INPUT, AC/DC OUTPUT, THROUGH HOLE-STRAIGHT MOUNT

Download VF4-11F13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

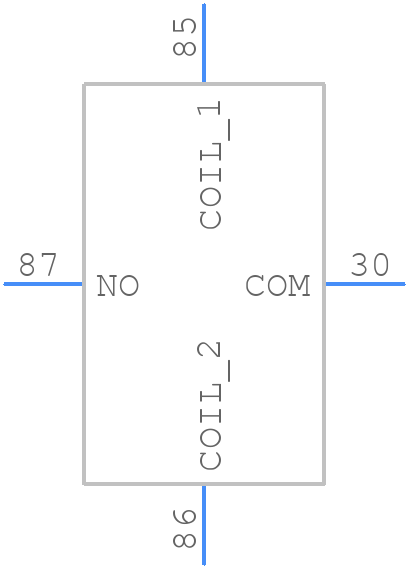

VF4-11F13 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

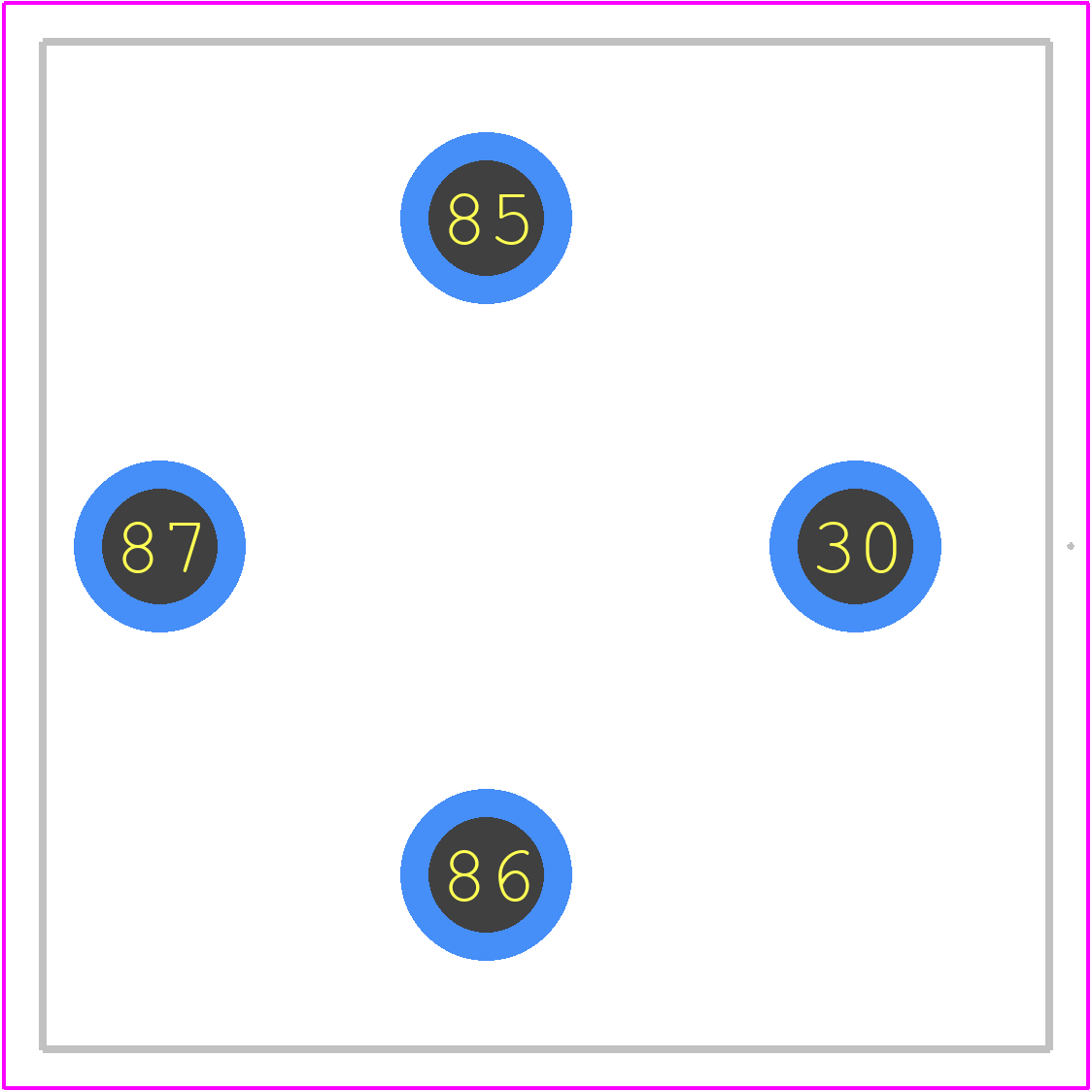

VF4-11F13 - TE Connectivity PCB footprint - Other - Other - VF4-11F13-4
click to zoom
3D Models
VF4-11F13 - TE Connectivity - 3D model - Other - VF4-11F13-4
click to zoom

VF4-11F13 Details

  • Manufacturer Part Number:

    VF4-11F13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    26.2 mm

  • Body Height:

    26.2 mm

  • Body Length or Diameter:

    26.2 mm

  • Coil Current(DC)-Max:

    0.133 A

  • Coil Power:

    1600 mW

  • Coil Resistance:

    90 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    40 A

  • Contact Current(DC)-Max:

    40 A

  • Contact/Output Supply Type:

    AC/DC

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Physical Dimension:

    26.2mm x 26.2mm x 26.2mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Sealing:

    DUST PROOF

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

VF4-11F13 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm. Over-tightening can damage the terminals.
  • Yes, the VF4-11F13 is designed to withstand vibrations up to 10G according to IEC 61373. However, it's recommended to perform additional testing to ensure the connector meets your specific application requirements.
  • The maximum operating temperature for the VF4-11F13 is 125°C. Exceeding this temperature may affect the connector's performance and reliability.
  • Yes, the VF4-11F13 is compatible with lead-free soldering processes. However, it's recommended to follow the manufacturer's soldering guidelines to ensure reliable connections.
  • The VF4-11F13 has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter for 30 minutes. However, it's recommended to apply additional sealing or coatings for long-term exposure to humid or wet environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VF4-11F13 Overview

Use the download button to access the VF4-11F13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VF4-1, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
