The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input clock signal. This ensures proper device operation and prevents latch-up.
Optimizing the loop filter design involves selecting the correct values for R1, R2, C1, and C2. TI provides a loop filter design tool to help with this process. Additionally, consider the trade-offs between phase margin, gain margin, and settling time when selecting the component values.
The maximum input clock frequency is 250 MHz, but it's recommended to limit the input clock frequency to 200 MHz or less to ensure reliable operation and minimize jitter.
Configure the VFC32KUE4 by setting the appropriate values for the R-DIV, N-DIV, and M-DIV registers. TI provides a frequency planning tool to help with this process. Additionally, consider the trade-offs between output frequency, phase noise, and spurious performance when selecting the register values.
The typical power consumption of the VFC32KUE4 is around 450 mW, but this can vary depending on the specific application, output frequency, and operating conditions. Refer to the datasheet for more detailed power consumption information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VFC32KUE4 Overview

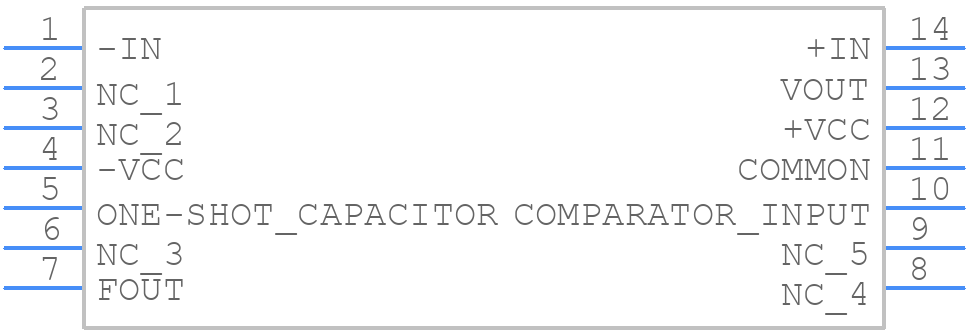

Use the download button to access the VFC32KUE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VFC32,
or try a keyword search, such as Analog Special Function Converters
