VHB100W-Q24-S12 - CUI Inc.

Description: Through Hole Isolated Module DC DC Converter 1 Output 12V 8.3A 9V - 36V Input

Download VHB100W-Q24-S12 Model

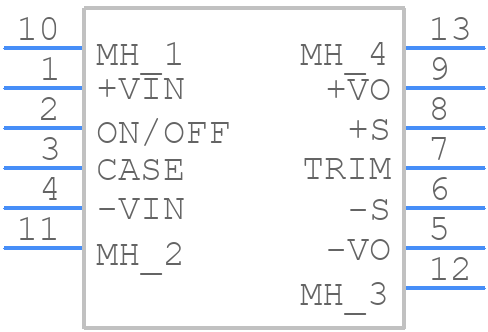

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

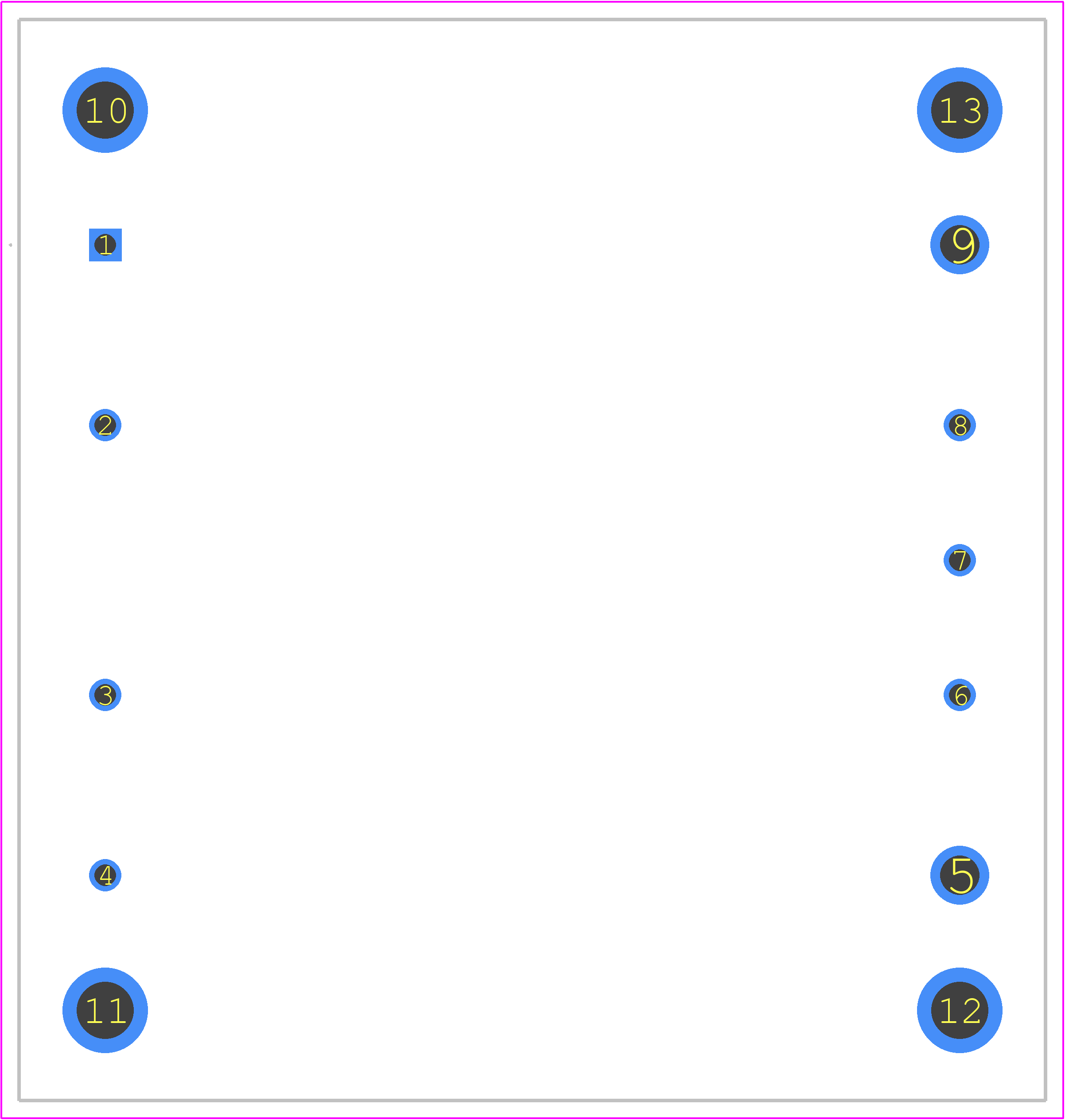

VHB100W-Q24-S12 - CUI Inc. PCB footprint - Other - Other - 9-DIP Module
click to zoom
3D Models
VHB100W-Q24-S12 - CUI Inc.  - 3D model - Other - 9-DIP Module
click to zoom

VHB100W-Q24-S12 Details

  • Manufacturer Part Number:

    VHB100W-Q24-S12

  • Brand Name:

    CUI Inc

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    MODULE

  • Package Description:

    MODULE-9

  • Pin Count:

    9

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    61 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    100 W

  • Trim/Adjustable Output:

    YES

  • Width:

    57.9 mm

VHB100W-Q24-S12 Frequently Asked Questions (FAQs)

  • CUI Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • CUI Inc recommends securing the module with screws or adhesive, and ensuring that the PCB is properly anchored to the system's chassis to minimize vibration-induced stress.
  • CUI Inc recommends keeping the input voltage within 10% of the nominal 24V input to ensure reliable operation and to prevent damage to the module.
  • Yes, the VHB100W-Q24-S12 can be used in a redundant or parallel configuration, but CUI Inc recommends consulting with their application engineers to ensure proper design and implementation.
  • CUI Inc provides efficiency curves in the datasheet, but for specific application requirements, they recommend consulting with their application engineers or requesting custom efficiency data.
