VHB200W-Q48-S12 - CUI Inc.

VHB200W-Q48-S12 Details

• Manufacturer Part Number:

  VHB200W-Q48-S12

• Brand Name:

  CUI Inc

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  MODULE

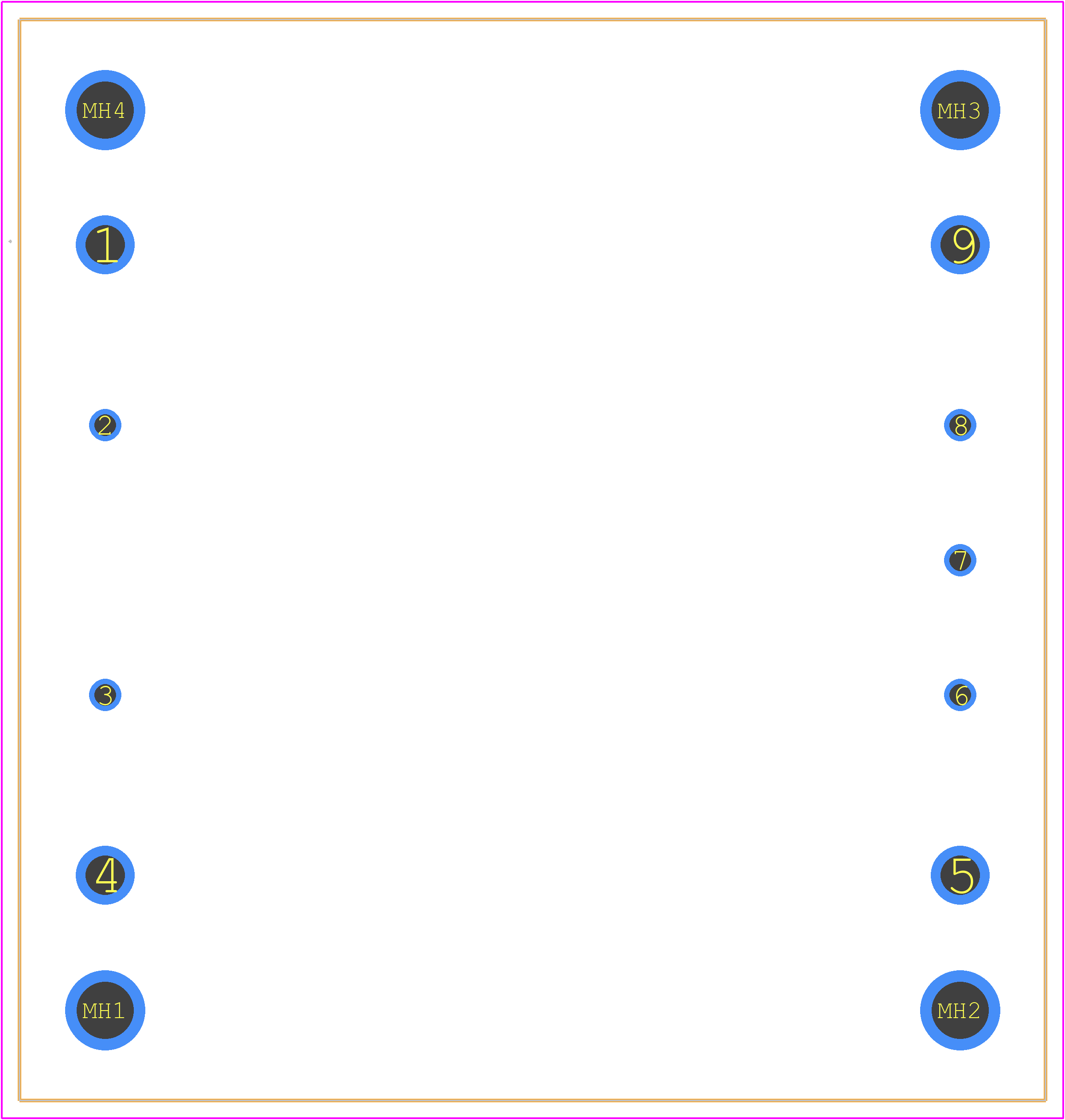

• Package Description:

  HALF BRICK PACKAGE-9

• Pin Count:

  9

• ECCN Code:

  EAR99

• Manufacturer:

  CUI Inc

• YTEOL:

  7.3

• Additional Feature:

  SEATED HGT-NOM

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Input Voltage-Max:

  75 V

• Input Voltage-Min:

  48 V

• Input Voltage-Nom:

  18 V

• JESD-30 Code:

  R-PDMA-P9

• Length:

  61 mm

• Load Regulation-Max:

  0.2%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  13.2 V

• Output Voltage-Min:

  10.8 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  13.2 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  200 W

• Trim/Adjustable Output:

  YES

• Width:

  57.9 mm
