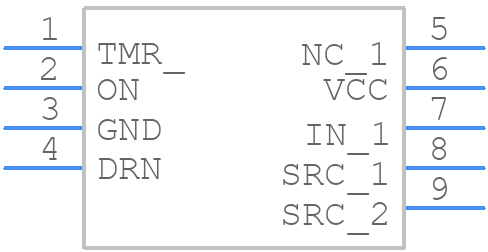

VI-254-EU footprint, schematic symbol and 3D model by VICOR

Symbol

click to zoom

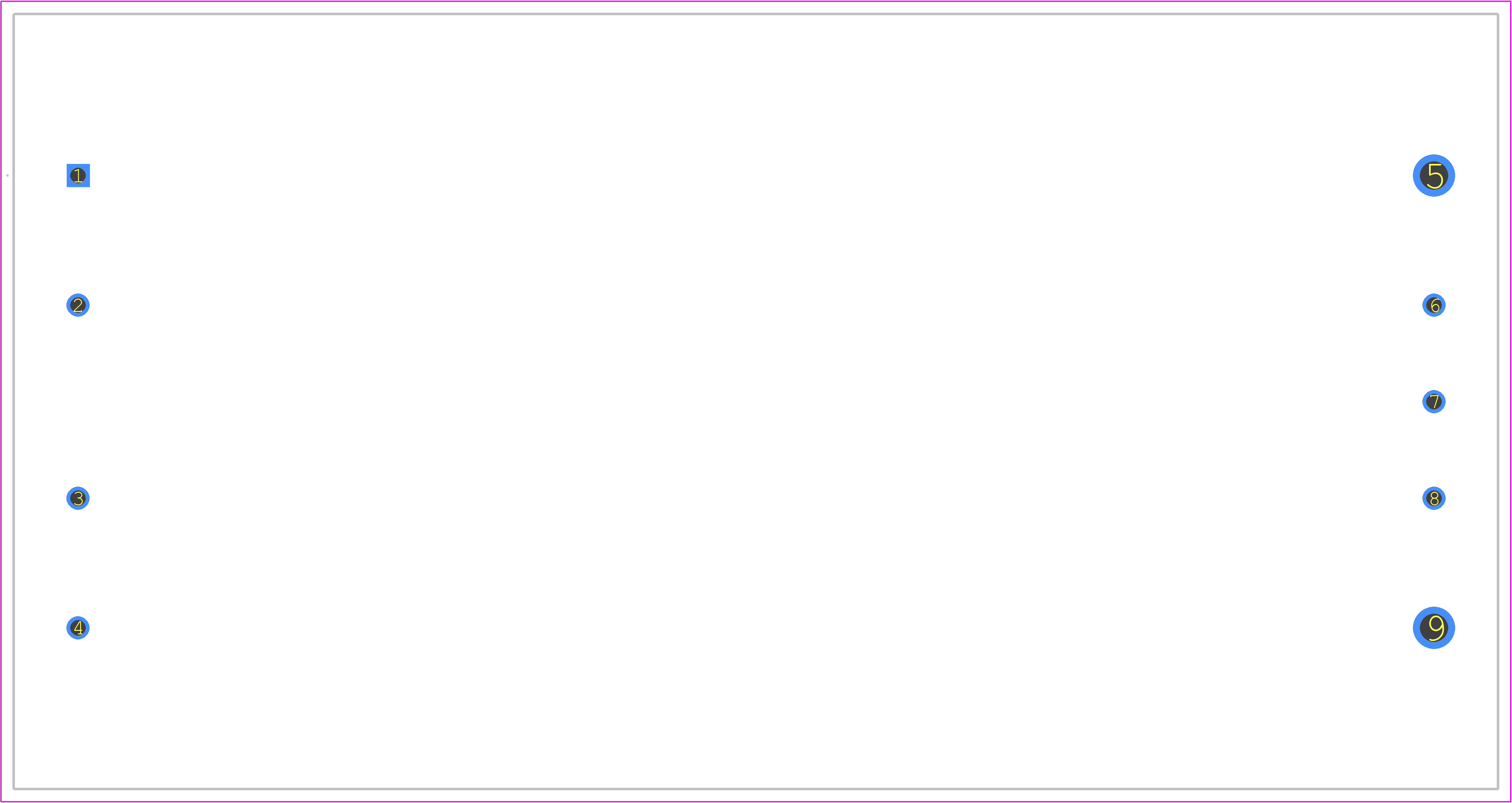

PCB Footprints

VI-254-EU - VICOR PCB footprint - Other - Other - VI-254-EU-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VI-254-EU
Part Number VI-254-EU
Manufacturer VICOR
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - VI-254-EU-2
Released Date Sep 12, 2026
Last Modified Date Sep 11, 2026 11:48 AM UTC
Pinout / Pin List Click Here (Member Only)

VI-254-EU Details

Manufacturer Part Number:
VI-254-EU
Pbfree Code:
No
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Package Description:
PACKAGE-9
Pin Count:
9
ECCN Code:
EAR99
Factory Lead Time:
22 Weeks
Manufacturer:
Vicor Power
YTEOL:
5.4
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
200 V
Input Voltage-Min:
100 V
Input Voltage-Nom:
150 V
JESD-30 Code:
R-XDFM-P9
JESD-609 Code:
e0
Length:
116.8 mm
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-10 °C
Output Voltage-Max:
52.8 V
Output Voltage-Min:
24 V
Output Voltage-Nom:
48 V
Package Body Material:
UNSPECIFIED
Package Code:
DFM
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Qualification Status:
Not Qualified
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
200 W
Trim/Adjustable Output:
YES
Width:
61 mm

VI-254-EU Frequently Asked Questions (FAQs)

Vicor recommends a 2-layer PCB with a solid copper plane on the bottom layer for heat spreading, and a minimum of 2 oz copper thickness. Additionally, a thermal relief pattern around the device's thermal pads is recommended to ensure good thermal conductivity.
Vicor recommends following the recommended PCB mounting and screw torque specifications, and using a conformal coating to protect the device from moisture and contaminants. Additionally, the device's thermal interface material should be securely attached to the heat sink to prevent thermal interface resistance increase due to vibration.
The maximum allowed capacitance on the output of the VI-254-EU is 1000uF. Exceeding this value may cause instability or oscillation in the converter.
Yes, the VI-254-EU can be used in a parallel configuration to increase power output. However, it is recommended to use a master-slave configuration with a single clock signal to ensure synchronization and prevent beat frequencies. Additionally, the output capacitors should be matched to ensure equal current sharing between the devices.
The recommended input fuse rating for the VI-254-EU is 5A slow-blow or 3A fast-acting. The fuse should be selected based on the maximum input current and the device's power rating.
