The maximum operating temperature range for the VI-J12-IX is -40°C to +100°C, with a derating of 1.5% per °C above 80°C.
Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring that the module is mounted on a thermally conductive surface. Vicor recommends a minimum airflow of 200 LFM (linear feet per minute) and a heat sink with a thermal resistance of 1°C/W or less.
Vicor recommends using a minimum input capacitance of 100 μF, with an ESR (Equivalent Series Resistance) of 0.1 Ω or less, to ensure stable operation and minimize input ripple.
Yes, the VI-J12-IX is designed to meet the requirements of high-reliability and military applications. Vicor offers a range of screening options, including burn-in, temperature cycling, and vibration testing, to ensure the module meets the required standards.
Vicor provides a troubleshooting guide in the application note AN-104, which covers common issues and their solutions. Additionally, Vicor's technical support team is available to assist with any troubleshooting or design-related questions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VI-J12-IX Overview

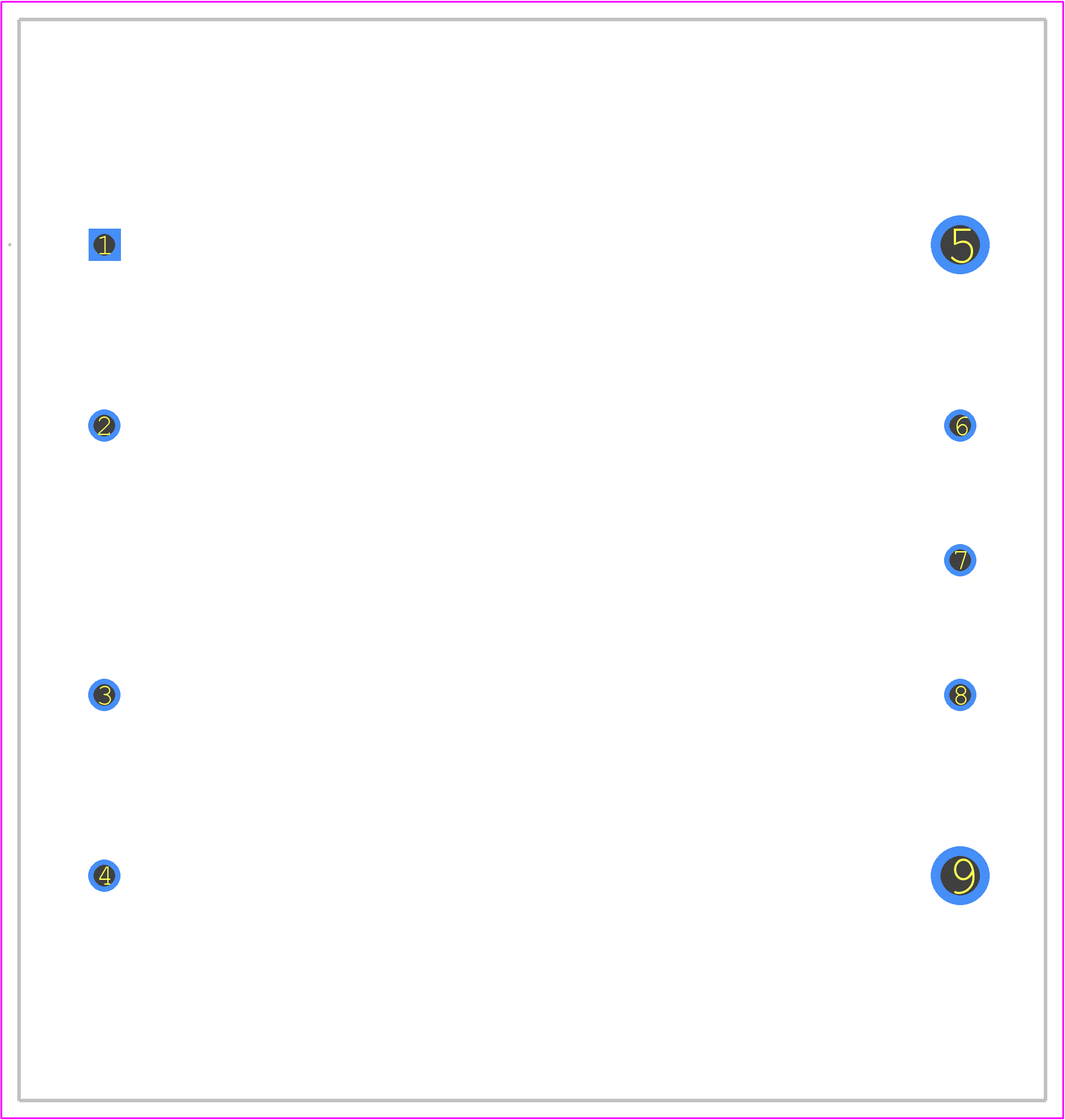

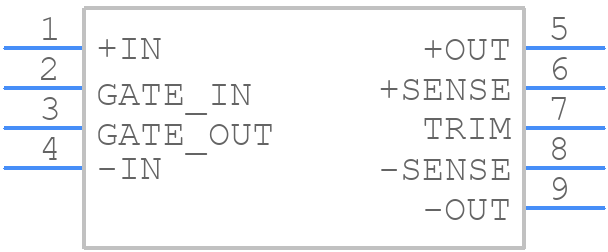

Use the download button to access the VI-J12-IX schematic symbol, PCB footprint, and 3D model.
