VI-JW0-CX footprint, schematic symbol and 3D model by VICOR

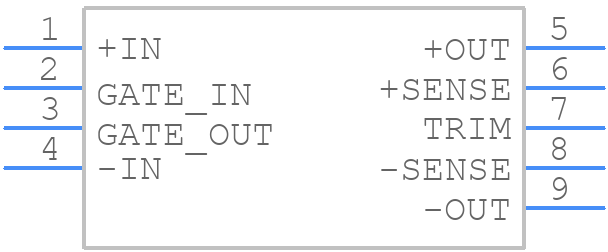

Symbol

click to zoom

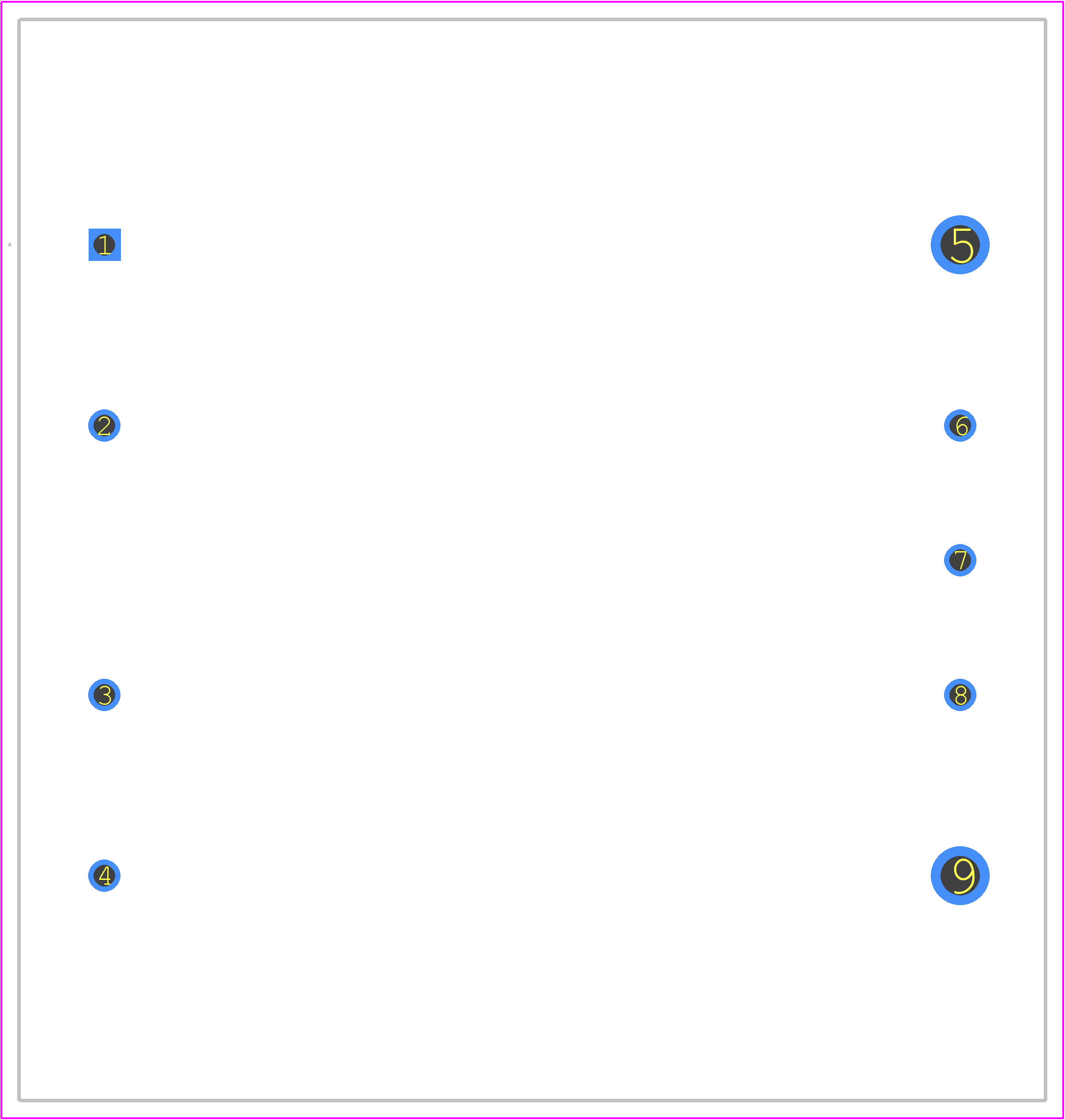

PCB Footprints

VI-JW0-CX - VICOR PCB footprint - Other - Other - VI-JW0-CX-2

click to zoom

3D Models

VI-JW0-CX - VICOR - 3D model - Other - VI-JW0-CX-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VI-JW0-CX
Part Number VI-JW0-CX
Manufacturer VICOR
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - VI-JW0-CX-2
Released Date Nov 13, 2023
Last Modified Date Nov 13, 2023 4:35 AM UTC
Pinout / Pin List Click Here (Member Only)

VI-JW0-CX Details

Manufacturer Part Number:
VI-JW0-CX
Pbfree Code:
No
Part Life Cycle Code:
Active
Package Description:
Module-9
ECCN Code:
EAR99
Factory Lead Time:
22 Weeks
Manufacturer:
Vicor Corporation
YTEOL:
5
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P9
JESD-609 Code:
e0
Length:
61 mm
Load Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-25 °C
Output Voltage-Max:
5.5 V
Output Voltage-Min:
2.5 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Qualification Status:
Not Qualified
Seated Height-Max:
13.46 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
75 W
Trim/Adjustable Output:
YES
Width:
57.9 mm

VI-JW0-CX Frequently Asked Questions (FAQs)

Vicor recommends a PCB layout with a solid copper plane underneath the module, and thermal vias connecting the top and bottom layers to dissipate heat efficiently.
Vicor recommends securing the module with screws or adhesive, and using a conformal coating to protect against moisture and vibration. Additionally, ensure that the PCB is designed to withstand the expected vibration levels.
The maximum allowed capacitance on the output is 10uF. Exceeding this value may cause instability or oscillation in the converter.
Yes, the VI-JW0-CX can be used in redundant or parallel configurations, but it requires careful design and consideration of the system's overall architecture and fault tolerance.
Check the enable pin's voltage level, ensure it is within the recommended range, and verify that it is not being driven by multiple sources. Also, check for any noise or ringing on the enable pin that may be causing issues.

Trust Checks

Community Provided

System Verified

Community Approved

VI-JW0-CX Overview

Use the download button to access the VI-JW0-CX schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like VI-JW, or try a keyword search, such as Power Supply Modules

Parts related to VI-JW0-CX

Showing 0 results

Image	Part Number	Model
	VI-JW0-IX Vicor Corporation DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid
	VI-JW0-EX Vicor Corporation DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid
	VE-JW0-MX Vicor Corporation DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid
	VE-JW0-IX Vicor Corporation DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid
	VE-JW0-EX Vicor Corporation DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid
For a full list of alternate parts for VI-JW0-CX, check out Findchips.com
