VI-JW0-CY footprint, schematic symbol and 3D model by VICOR

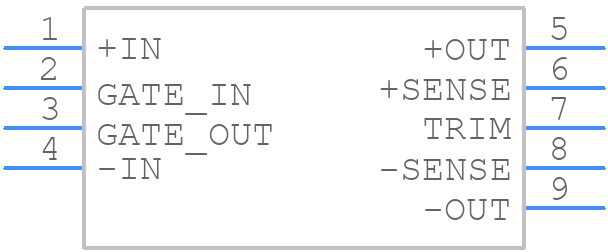

Symbol

click to zoom

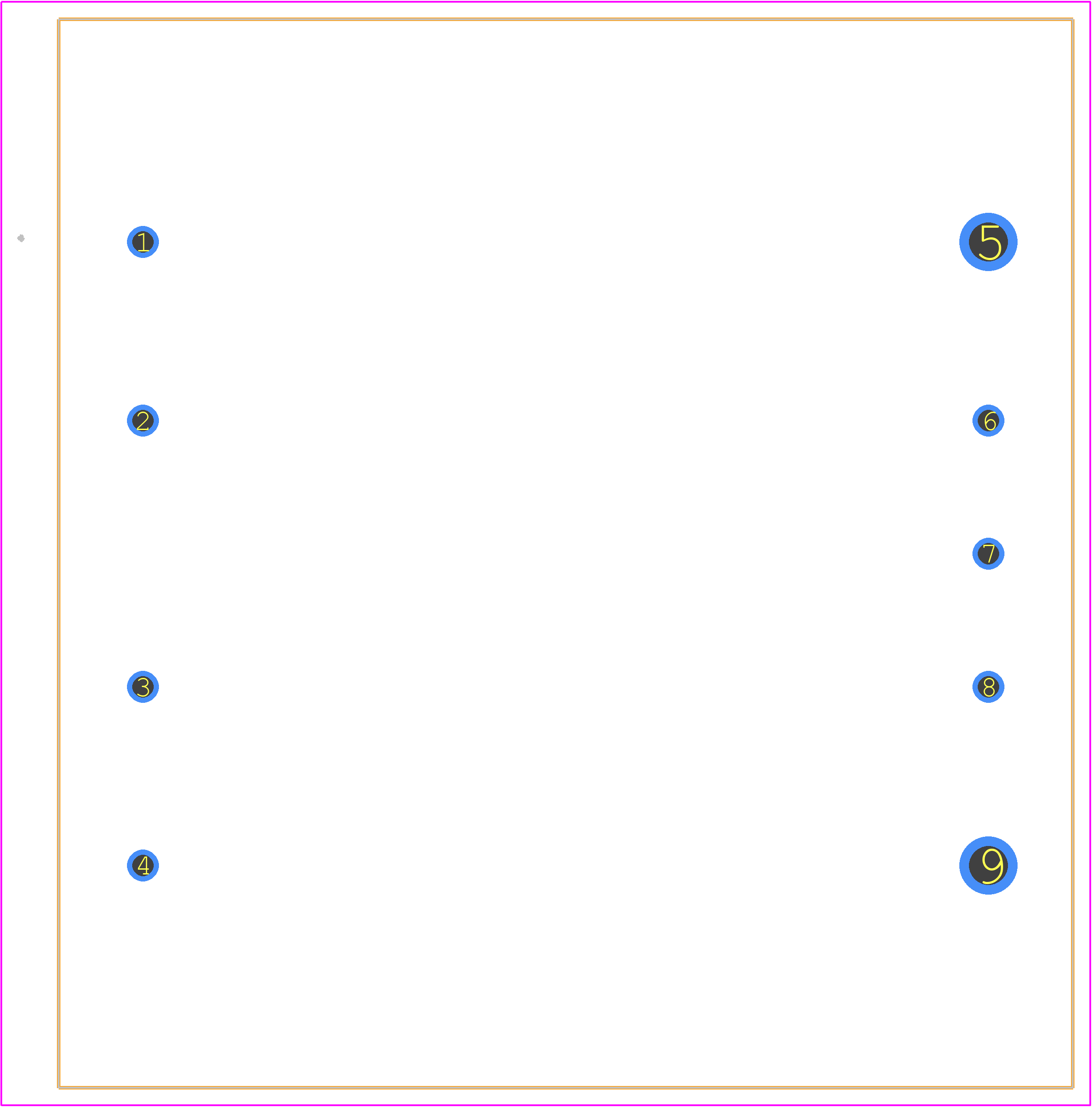

PCB Footprints

VI-JW0-CY - VICOR PCB footprint - Other - Other - VI-JW0-CY-3

click to zoom

3D Models

VI-JW0-CY - VICOR - 3D model - Other - VI-JW0-CY-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VI-JW0-CY
Part Number VI-JW0-CY
Manufacturer VICOR
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - VI-JW0-CY-3
Released Date Jun 14, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

VI-JW0-CY Details

Manufacturer Part Number:
VI-JW0-CY
Pbfree Code:
No
Part Life Cycle Code:
Active
Package Description:
Module-9
ECCN Code:
EAR99
Factory Lead Time:
22 Weeks
Manufacturer:
Vicor Corporation
YTEOL:
6
Additional Feature:
REMOTE SHUTDOWN
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
UL, CSA, TUV, CE
Efficiency (Main Output):
90%
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P9
JESD-609 Code:
e0
Length:
61 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-25 °C
Output Voltage-Max:
5.5 V
Output Voltage-Min:
2.5 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
DFM
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Qualification Status:
Not Qualified
Seated Height-Max:
13.46 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
50 W
Trim/Adjustable Output:
YES
Width:
57.9 mm

VI-JW0-CY Frequently Asked Questions (FAQs)

Vicor recommends a thermal pad on the bottom of the module, connected to a large copper area on the PCB to dissipate heat. A minimum of 2 oz copper thickness is recommended, and the thermal pad should be connected to a heat sink or a metal core PCB for optimal thermal performance.
To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current. A minimum of 10uF capacitance on the input and output rails is also recommended to filter out noise and ensure stable operation.
The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the module's performance and reliability.
The VI-JW0-CY is rated for operation up to 100°C ambient temperature. However, derating is required above 80°C to ensure reliable operation. Consult the datasheet for derating curves and guidelines.
The VI-JW0-CY has a built-in temperature monitoring pin (VTM) that can be connected to a microcontroller or a temperature monitoring IC. The VTM pin outputs a voltage proportional to the module's temperature, allowing for real-time temperature monitoring.

Trust Checks

Expert Contribution

System Verified

Community Approved

VI-JW0-CY Overview

Use the download button to access the VI-JW0-CY schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like VI-JW, or try a keyword search, such as Power Supply Modules
