VI0601550000G - Amphenol

Description: Conn Terminal Block 6 POS 5mm Solder ST Thru-Hole 16A/Contact Box

Download VI0601550000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VI0601550000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

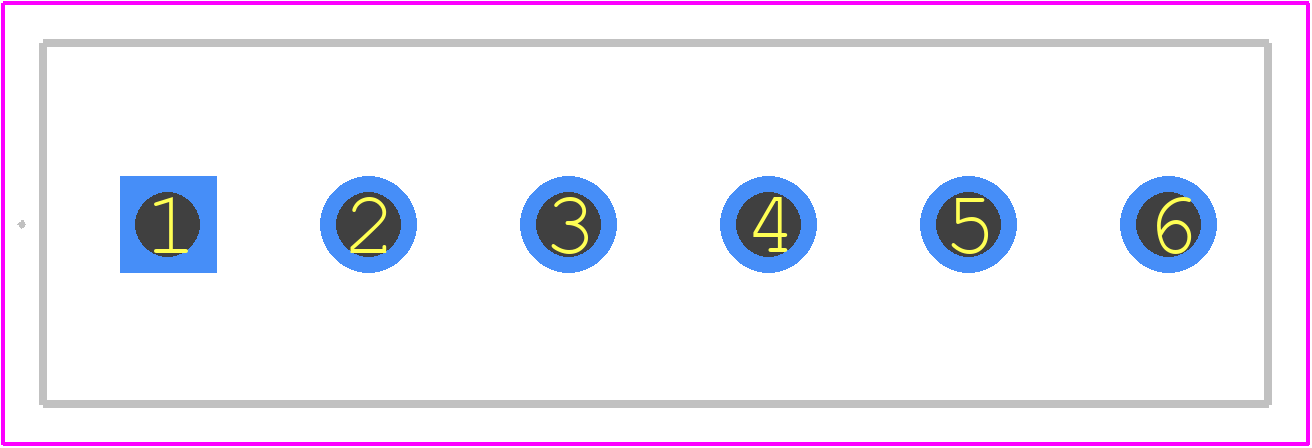

VI0601550000G - Amphenol PCB footprint - Other - Other - VI0601550000G-4
click to zoom
3D Models
VI0601550000G - Amphenol - 3D model - Other - VI0601550000G-4
click to zoom

VI0601550000G Details

  • Manufacturer Part Number:

    VI0601550000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    6.81

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    SCREW CLAMP

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    16 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3.31 mm2

  • Wire Gauge:

    12 AWG

VI0601550000G Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). However, it's always best to consult the specific application requirements and the datasheet for the most up-to-date information.
  • Yes, the VI0601550000G connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, which means it can operate in environments with vibrations up to 15 g (147 m/s²) in the frequency range of 2-200 Hz.
  • Yes, the VI0601550000G connector is suitable for outdoor use. It has a IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter (3.3 feet) for 30 minutes. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • The VI0601550000G connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the temperature range may vary depending on the specific application and the materials used in the connector.
  • The VI0601550000G connector is designed to be compatible with other manufacturers' mating connectors that meet the same industry standards (e.g., MIL-DTL-55302). However, it's recommended to verify compatibility and consult the datasheet before using connectors from different manufacturers.
