VI0921550000G - Amphenol

Description: Fixed Terminal Blocks 9P 5.08MM TERM BLK FIXED HORIZONTAL

Download VI0921550000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VI0921550000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

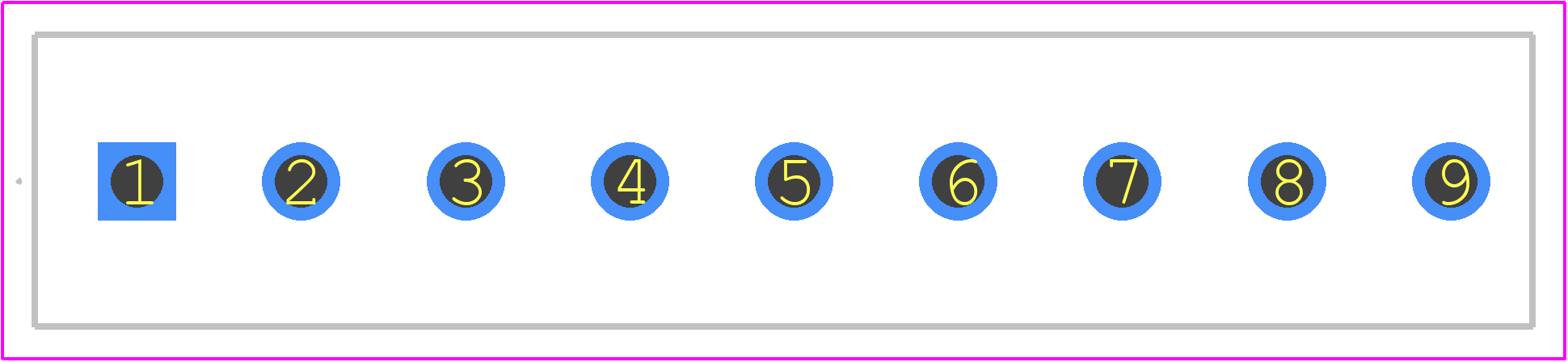

VI0921550000G - Amphenol PCB footprint - Other - Other - VI0921550000G-4
click to zoom
3D Models
VI0921550000G - Amphenol - 3D model - Other - VI0921550000G-4
click to zoom

VI0921550000G Details

  • Manufacturer Part Number:

    VI0921550000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    6.81

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    SCREW CLAMP

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    16 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3.31 mm2

  • Wire Gauge:

    12 AWG

VI0921550000G Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the VI0921550000G is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 61373 Cat. 2. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The VI0921550000G has a IP67 rating, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust. However, it's essential to ensure proper sealing and protection from environmental factors like UV, salt, and extreme temperatures.
  • The VI0921550000G can operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F). It's essential to consider the temperature range of your application to ensure reliable performance and prevent damage to the connector.
