VIPER0PLDTR - STMicroelectronics

Description: AC/DC Converters Zero-power off-line high voltage converter

Download VIPER0PLDTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

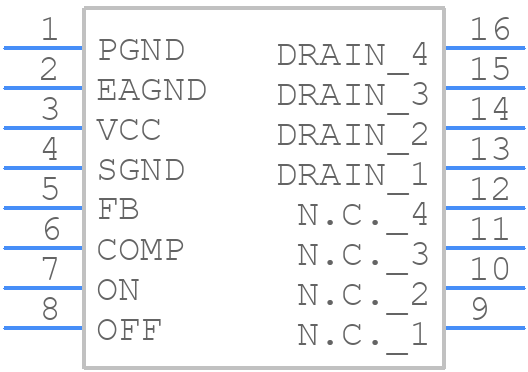

VIPER0PLDTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER0PLDTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO16 Narrow_1
click to zoom
3D Models
VIPER0PLDTR - STMicroelectronics - 3D model - Small Outline Packages - SO16 Narrow_1
click to zoom

VIPER0PLDTR Details

  • Manufacturer Part Number:

    VIPER0PLDTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    9 V

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    66 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

VIPER0PLDTR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for VIPER0PLDTR is -40°C to 150°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
  • To minimize EMI, it's recommended to use a multi-layer PCB with a solid ground plane, keep sensitive analog traces away from the VIPER0PLDTR, and use shielding or filtering components as needed.
  • To troubleshoot issues, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and that there are no signs of physical damage. Use oscilloscopes or logic analyzers to monitor the device's behavior and identify potential issues.
  • Yes, the VIPER0PLDTR is suitable for high-reliability applications. It's essential to follow STMicroelectronics' guidelines for reliability and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
