Please enter a minimum 3 letters or numbers
Technical Content
Part Image

VIPER12AS-E - STMicroelectronics

Description: Low power offline switched-mode power supply primary switcher

Download VIPER12AS-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

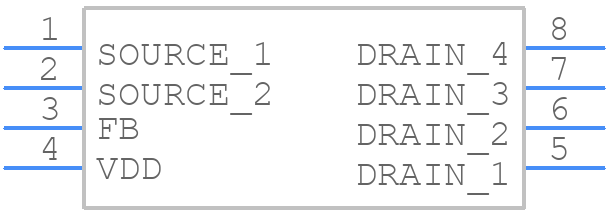

VIPER12AS-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER12AS-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO--8
click to zoom
3D Models
VIPER12AS-E - STMicroelectronics - 3D model - Small Outline Packages - SO--8
click to zoom

VIPER12AS-E Details

  • Manufacturer Part Number:

    VIPER12AS-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current-Max:

    0.48 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    66 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

VIPER12AS-E Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and a separate layer for the high-voltage traces. The datasheet provides a recommended PCB layout, but it's essential to follow good PCB design practices to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • The transformer selection depends on the output power, voltage, and current requirements. STMicroelectronics provides a transformer selection guide in the datasheet, but it's crucial to consider factors like core material, turns ratio, and leakage inductance to ensure efficient energy transfer and minimize losses.
  • The VIPER12AS-E has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink, thermal interface material, and a well-designed PCB with adequate copper thickness. Keep the device away from heat sources, and consider using a thermal shield or potting compound for high-reliability applications.
  • The VIPER12AS-E has a built-in OVP feature, but it's essential to add external components to ensure reliable operation. Use a voltage supervisor or a dedicated OVP IC to monitor the output voltage and shut down the device in case of an overvoltage event. Add a zener diode or a TVS diode to clamp the voltage and protect the device from voltage spikes.
  • To minimize EMI, use a shielded transformer, keep the high-voltage traces short and away from sensitive circuits, and add EMI filters or common-mode chokes as needed. Ensure good PCB layout practices, and consider using a metal enclosure or shielding to contain EMI radiation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VIPER12AS-E Overview

Use the download button to access the VIPER12AS-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VIPER, or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut

Suggested Parts

If you searched for VIPER12AS-E, you might also be interested in these parts:
Part Number
VIPER12ASTR-E
VIPER12ADIP-E
NCS210SQT2G
HEDS-9720#P50
WJ127-5.0-2P
APDA3020LZGCK
90130-1208
FSUSB74UMX
553-0711F

Parts related to VIPER12AS-E

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

VIPER12AS-E Alternates

Showing results

Image Part Number Model
Part Image VIPER12AS13TR STMicroelectronics

Switching Regulator, Current-mode, 0.48A, 66kHz Switching Freq-Max, MOS, PDSO8
