VIPER25LD - STMicroelectronics

Description: VIPerPlus family: Quasi-resonant high performance off line high voltage converter

Download VIPER25LD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

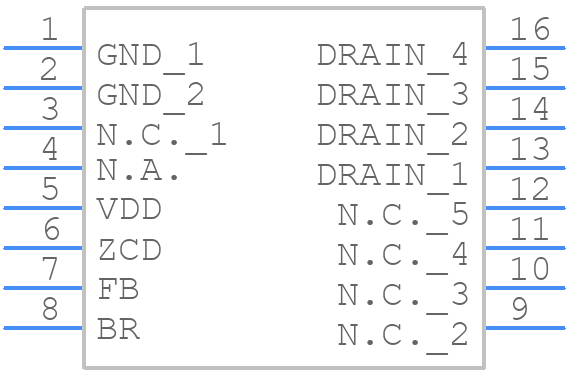

Symbol
VIPER25LD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER25LD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16*
click to zoom
3D Models
VIPER25LD - STMicroelectronics - 3D model - Small Outline Packages - SO-16*
click to zoom

VIPER25LD Details

  • Manufacturer Part Number:

    VIPER25LD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    23.5 V

  • Input Voltage-Min:

    8.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    250 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

VIPER25LD Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4571, which includes guidelines for component placement, thermal management, and routing to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • The transformer selection depends on the input voltage, output voltage, and power rating of your design. STMicroelectronics provides a transformer selection guide in the datasheet, and you can also use online tools or consult with a transformer manufacturer to find a suitable transformer.
  • The VIPER25LD has a high power density, so thermal management is crucial. Ensure good airflow around the device, use a heat sink if necessary, and follow the thermal design guidelines in the datasheet to keep the junction temperature below 150°C.
  • Follow the EMC guidelines in the datasheet, use a shielded transformer, and implement proper filtering and shielding techniques to minimize EMI. You can also consult with STMicroelectronics' application notes and EMC experts for specific guidance.
  • The VIPER25LD is a highly reliable device with a typical lifetime of 10-15 years or more, depending on the operating conditions. STMicroelectronics provides reliability data and guidelines in the datasheet and application notes to help you design a reliable power supply.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VIPER25LD Overview

Use the download button to access the VIPER25LD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VIPER, or try a keyword search, such as Switching Regulator or Controllers
