VIPER26HD - STMicroelectronics

Description: Fixed frequency VIPer™ plus family

Download VIPER26HD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

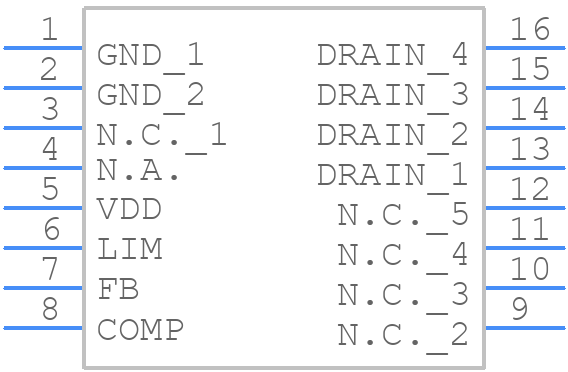

VIPER26HD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER26HD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16N package information
click to zoom
3D Models
VIPER26HD - STMicroelectronics - 3D model - Small Outline Packages - SO-16N package information
click to zoom

VIPER26HD Details

  • Manufacturer Part Number:

    VIPER26HD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    23.5 V

  • Input Voltage-Min:

    11.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.74 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    23.5 V

  • Supply Voltage-Min (Vsup):

    11.5 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    127 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

VIPER26HD Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and a separate layer for the high-voltage power supply. The layout should also minimize the loop area of the high-frequency circuits to reduce EMI.
  • To ensure the VIPER26HD operates within its SOA, monitor the device's junction temperature, output current, and input voltage. Use thermal management techniques, such as heat sinks or thermal interfaces, to keep the junction temperature below 150°C.
  • When selecting a transformer for the VIPER26HD, consider the transformer's turns ratio, inductance, and core material. Ensure the transformer is designed for high-frequency operation and can handle the required power levels.
  • Optimize the output filter by selecting the right component values and layout to minimize EMI. Use a common-mode choke and a differential-mode filter to reduce conducted EMI. Ensure the filter is designed to meet the required attenuation levels for regulatory compliance.
  • Use a combination of oscilloscopes, signal generators, and power analyzers to verify the VIPER26HD's performance. Measure the output voltage, current, and power factor to ensure the device is operating within its specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VIPER26HD Overview

Use the download button to access the VIPER26HD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VIPER, or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
