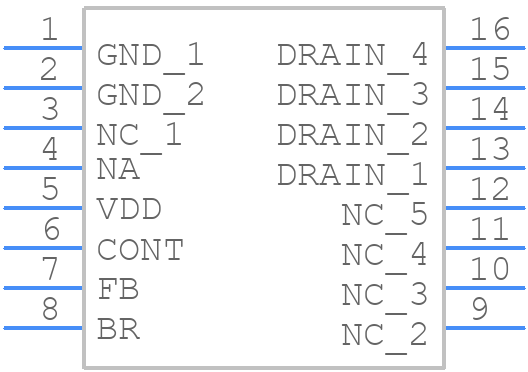

VIPER27HD - STMicroelectronics

VIPER27HD Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of VIPER27HD?
  STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and a separate layer for the high-voltage power supply. The layout should also minimize the loop area of the high-frequency circuits to reduce EMI.
• How do I ensure the VIPER27HD operates within its safe operating area (SOA)?
  To ensure the VIPER27HD operates within its SOA, monitor the device's junction temperature, output current, and input voltage. Use thermal management techniques, such as heat sinks or thermal interfaces, to keep the junction temperature below 150°C.
• What are the key considerations for selecting the right transformer for the VIPER27HD?
  When selecting a transformer for the VIPER27HD, consider the transformer's turns ratio, magnetizing inductance, and leakage inductance. Ensure the transformer is designed for the specific output voltage and power requirements of your application.
• How do I optimize the VIPER27HD's feedback loop for stable operation?
  To optimize the feedback loop, choose the right compensation components (R1, R2, C1, and C2) based on the application's requirements. Use the datasheet's recommended values as a starting point and adjust them as needed to achieve stable operation.
• What are the key considerations for EMI filtering in VIPER27HD-based designs?
  To minimize EMI, use a common-mode choke and a differential-mode filter at the input stage. Ensure the PCB layout is optimized for EMI reduction, and consider adding shielding or a metal enclosure to the design.
