VIPER28LD - STMicroelectronics

Description: VIPerPlus family: Peak power fixed frequency off line high voltage converter

Download VIPER28LD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

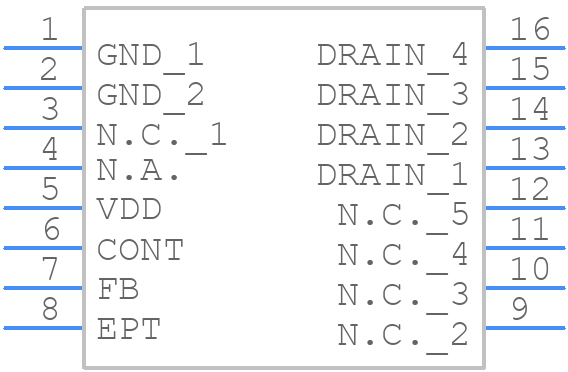

VIPER28LD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER28LD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16*
click to zoom
3D Models
VIPER28LD - STMicroelectronics - 3D model - Small Outline Packages - SO-16*
click to zoom

VIPER28LD Details

  • Manufacturer Part Number:

    VIPER28LD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    23.5 V

  • Input Voltage-Min:

    8.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.85 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.9 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    66 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

VIPER28LD Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4571, which includes guidelines for component placement, thermal management, and routing to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • The transformer selection depends on the input voltage, output voltage, and power rating of your design. STMicroelectronics provides a transformer selection guide in the datasheet, and you can also use online tools or consult with a transformer manufacturer to find a suitable transformer.
  • The VIPER28LD has a high power density, so thermal management is crucial. Ensure good airflow around the device, use a heat sink if necessary, and follow the thermal design guidelines in the datasheet to keep the junction temperature below 150°C.
  • The VIPER28LD has built-in OVP and UVP features, but you need to add external components to configure the thresholds and hysteresis. Refer to the datasheet and application notes for guidance on implementing OVP and UVP in your design.
  • The VIPER28LD is designed to minimize EMI, but you still need to follow good PCB design practices, such as using a solid ground plane, minimizing loop areas, and adding EMI filters if necessary. Consult the datasheet and application notes for more information on EMI mitigation.
