VIPER317LDTR - STMicroelectronics

Description: Energy Saving Off-line High Voltage Converter

Download VIPER317LDTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

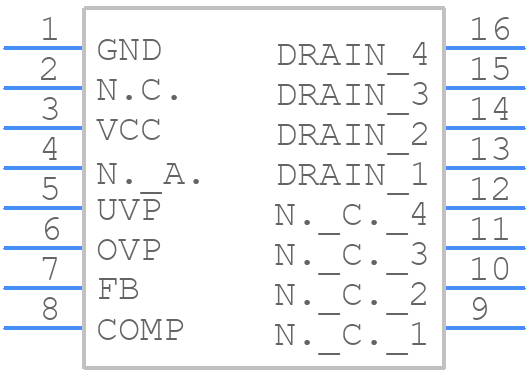

Symbol
VIPER317LDTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER317LDTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO16N
click to zoom
3D Models
VIPER317LDTR - STMicroelectronics - 3D model - Small Outline Packages - SO16N
click to zoom

VIPER317LDTR Details

  • Manufacturer Part Number:

    VIPER317LDTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    9 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    2 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    66 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

VIPER317LDTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4571, which includes guidelines for component placement, thermal management, and routing to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • The transformer selection depends on the specific application requirements, such as output voltage, current, and power rating. STMicroelectronics provides a transformer selection guide in the datasheet, and also recommends consulting with a transformer manufacturer to ensure compatibility and optimal performance.
  • The VIPER317LDTR has a high power density, and thermal management is critical to ensure reliable operation. Engineers should consider using a heat sink, thermal interface material, and ensuring good airflow around the device. The datasheet provides thermal resistance and junction-to-ambient temperature ratings to aid in thermal design.
  • The VIPER317LDTR has a built-in OVP feature, but it can be adjusted or customized using external components. Engineers can use a voltage divider network to sense the output voltage and trigger the OVP pin to shut down the device in case of an overvoltage condition.
  • The VIPER317LDTR is designed to minimize EMI emissions, but engineers should still follow best practices for PCB layout, component selection, and shielding to reduce EMI. STMicroelectronics provides EMI-related guidelines in the application note AN4571, and recommends using a common-mode choke and Y-capacitors to filter EMI.
