VIPER318XDTR - STMicroelectronics

Description: Energy Saving Off-line High Voltage Converter

Download VIPER318XDTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

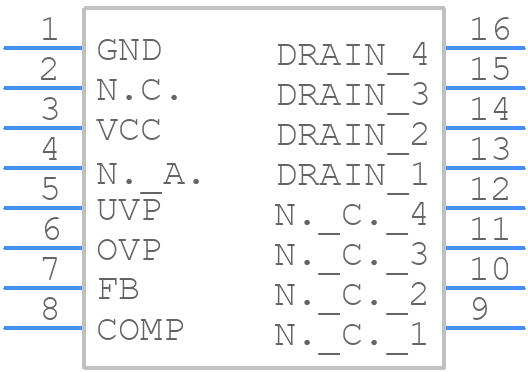

VIPER318XDTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER318XDTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO16N
click to zoom
3D Models
VIPER318XDTR - STMicroelectronics - 3D model - Small Outline Packages - SO16N
click to zoom

VIPER318XDTR Details

  • Manufacturer Part Number:

    VIPER318XDTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    9 V

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1.7 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    33 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

VIPER318XDTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the VIPER318XDTR application note (AN4571). It's essential to follow the layout guidelines to minimize electromagnetic interference (EMI) and ensure proper operation.
  • The transformer selection depends on the input voltage, output voltage, and power rating. STMicroelectronics provides a transformer selection guide in the VIPER318XDTR datasheet. Additionally, you can use online transformer selection tools or consult with a transformer manufacturer.
  • The VIPER318XDTR can operate up to 150°C ambient temperature, but it's recommended to derate the device for reliable operation. Consult the datasheet for thermal derating curves and ensure proper heat sinking.
  • The VIPER318XDTR has built-in OVP and UVP features. To implement these features, connect the OVP pin to a voltage divider network and the UVP pin to a voltage reference. Consult the datasheet for specific implementation details.
  • The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor (e.g., X7R or X5R). This ensures stable operation and minimizes input voltage ripple.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VIPER318XDTR Overview

Use the download button to access the VIPER318XDTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VIPER, or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
