VIPER319XDTR - STMicroelectronics

Description: AC to DC Switching Converter Boost/Buck/Flyback 4.25V 145kHz T/R 16-Pin SO N

Download VIPER319XDTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

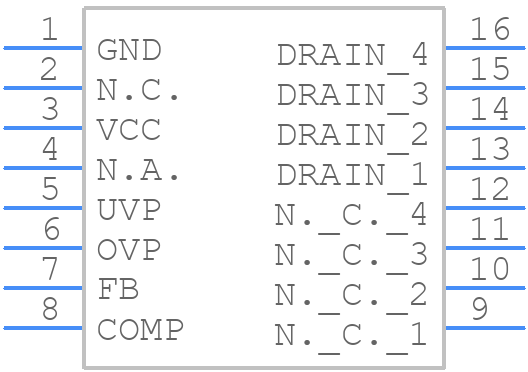

VIPER319XDTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER319XDTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16N-1
click to zoom
3D Models
VIPER319XDTR - STMicroelectronics - 3D model - Small Outline Packages - SO-16N-1
click to zoom

VIPER319XDTR Details

  • Manufacturer Part Number:

    VIPER319XDTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    9 V

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1.7 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    33 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

VIPER319XDTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the VIPER319XDTR involves keeping the input and output stages separate, using a star-ground configuration, and minimizing the loop area of the high-frequency circuits. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure the VIPER319XDTR operates within its SOA, monitor the device's junction temperature, output current, and input voltage. Implement overcurrent protection, overvoltage protection, and thermal monitoring to prevent damage.
  • When selecting a transformer for the VIPER319XDTR, consider the transformer's turns ratio, inductance, and core material. Ensure the transformer is designed for the specific application's voltage and current requirements.
  • To optimize the VIPER319XDTR for low standby power consumption, use a high-value resistor in the feedback network, minimize the output voltage, and use a low-quiescent-current transformer. Additionally, consider using a pulse-skipping mode or a burst-mode operation.
  • To minimize EMI, use a common-mode choke, a differential-mode filter, and a shielded transformer. Implement a Faraday shield around the switching node, and use a shielded cable for the output. Ensure good PCB layout practices, such as keeping sensitive nodes away from noisy areas.
