VIPER35HE - STMicroelectronics

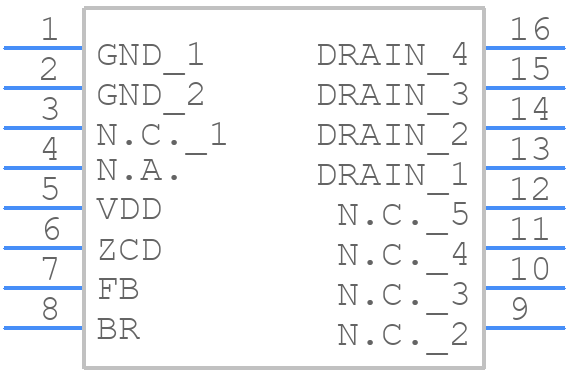

VIPER35HE Details

• Manufacturer Part Number:

  VIPER35HE

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  SDIP-10

• Manufacturer Package Code:

  SDIP 10

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Additional Feature:

  SUPPLY VOLTAGE FROM 8.5V TO 23.5 V

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  CURRENT/VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  23.5 V

• Input Voltage-Min:

  8.5 V

• JESD-30 Code:

  R-PDIP-T10

• Length:

  9.59 mm

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.05 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SDIP

• Package Equivalence Code:

  DIP10,.3,69

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  5.33 mm

• Supply Current-Max (Isup):

  25 mA

• Supply Voltage-Nom (Vsup):

  14 V

• Surface Mount:

  NO

• Switcher Configuration:

  BUCK-BOOST

• Switching Frequency-Max:

  250 kHz

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.77 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  7.62 mm
