VIPER37HDTR - STMicroelectronics

Description: VIPerPlus family: Fixed frequency 15W high performance off line high voltage converter 800V , 115kHz , 20W , -40°C ~ 150°C (TJ)

Download VIPER37HDTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

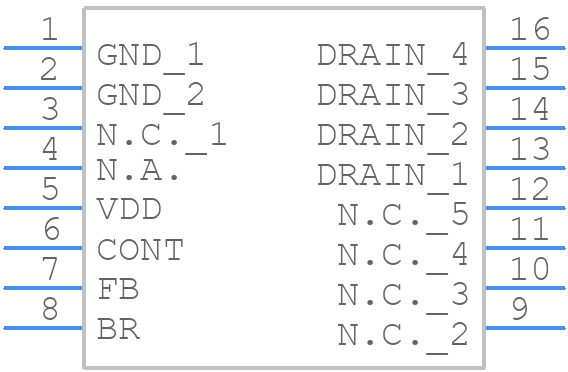

Symbol
VIPER37HDTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER37HDTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO16 Narrow_1
click to zoom
3D Models
VIPER37HDTR - STMicroelectronics - 3D model - Small Outline Packages - SO16 Narrow_1
click to zoom

VIPER37HDTR Details

  • Manufacturer Part Number:

    VIPER37HDTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    23.5 V

  • Input Voltage-Min:

    8.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    127 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

VIPER37HDTR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for VIPER37HDTR is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal design and layout guidelines, use a suitable heat sink, and ensure proper cooling. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
  • To minimize EMI, it's recommended to follow a star-point grounding scheme, keep the power traces short and wide, and use a solid ground plane. Additionally, place the input and output capacitors close to the device and use a shielded cable for the output.
  • Select capacitors with a high ripple current rating, low equivalent series resistance (ESR), and a voltage rating that exceeds the maximum input voltage. For the output capacitor, choose a capacitor with a high capacitance value and a low ESR to ensure stable output voltage.
  • The recommended input voltage range for VIPER37HDTR is 85VAC to 265VAC, with a maximum input voltage of 400VDC.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VIPER37HDTR Overview

Use the download button to access the VIPER37HDTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VIPER, or try a keyword search, such as Switching Regulator or Controllers
