VIPER37LD - STMicroelectronics

Description: VIPerPlus family: Fixed frequency 15W high performance off line high voltage converter

Download VIPER37LD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

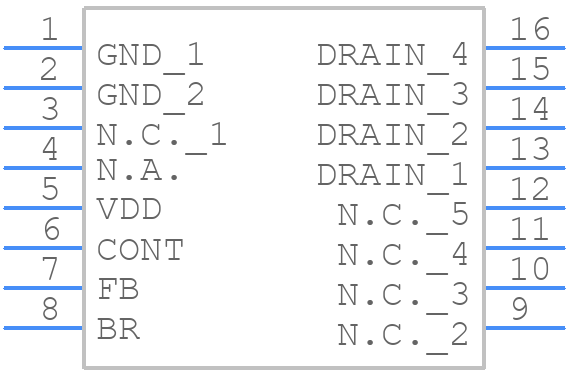

VIPER37LD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER37LD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16N package information
click to zoom
3D Models
VIPER37LD - STMicroelectronics - 3D model - Small Outline Packages - SO-16N package information
click to zoom

VIPER37LD Details

  • Manufacturer Part Number:

    VIPER37LD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    23.5 V

  • Input Voltage-Min:

    8.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    66 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

VIPER37LD Frequently Asked Questions (FAQs)

  • A good PCB layout for VIPER37LD involves keeping the high-frequency switching nodes (e.g., drain and source of the power MOSFET) as close as possible to the IC, using a solid ground plane, and minimizing the length of the traces carrying high-frequency signals.
  • When selecting a transformer for VIPER37LD, consider the output power, input voltage, and desired output voltage. Ensure the transformer's turns ratio, inductance, and core material are suitable for the application. Consult the datasheet and application notes for guidance.
  • To manage thermal performance, ensure good airflow around the IC, use a heat sink if necessary, and follow the recommended PCB layout guidelines. Monitor the junction temperature (Tj) and adjust the design accordingly to prevent overheating.
  • To optimize the feedback loop, choose the right compensation components (e.g., RFB and CFB), ensure the feedback voltage is within the recommended range, and adjust the loop gain to achieve stable operation. Consult the datasheet and application notes for guidance.
  • Common pitfalls to avoid include inadequate PCB layout, insufficient decoupling, and incorrect component selection. Ensure proper thermal management, follow the recommended application circuit, and consult the datasheet and application notes to avoid common design mistakes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VIPER37LD Overview

Use the download button to access the VIPER37LD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VIPER, or try a keyword search, such as Switching Regulator or Controllers
