VIPER38HDTR - STMicroelectronics

Description: Converter Offline Flyback Topology 115kHz 16-SO ,115kHz , 20W , 14 V ,8.5V ~ 23.5V , -40°C ~ 150°C (TJ)

Download VIPER38HDTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

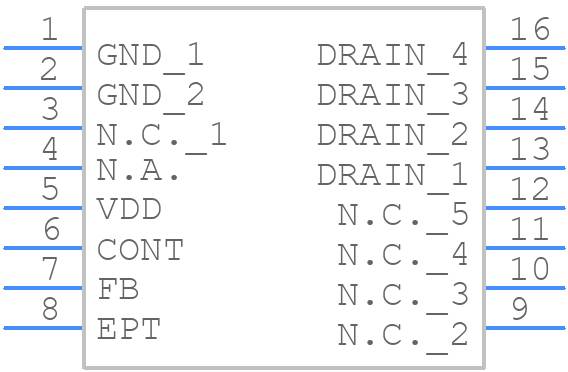

VIPER38HDTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER38HDTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO16 Narrow_1
click to zoom
3D Models
VIPER38HDTR - STMicroelectronics - 3D model - Small Outline Packages - SO16 Narrow_1
click to zoom

VIPER38HDTR Details

  • Manufacturer Part Number:

    VIPER38HDTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    23.5 V

  • Input Voltage-Min:

    8.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    127 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

VIPER38HDTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and a separate layer for the high-voltage traces to minimize noise and EMI. A good layout should also ensure that the input and output capacitors are placed close to the IC.
  • To ensure reliable start-up, make sure the input voltage is within the recommended range, and the input capacitor is properly sized. Also, ensure that the feedback resistors are correctly chosen to provide a stable output voltage. A soft-start circuit can also be added to prevent inrush currents.
  • The VIPER38HDTR has a high power density, so thermal management is crucial. Ensure good airflow around the IC, and consider using a heat sink or thermal pad to dissipate heat. Also, keep the IC away from other heat sources and ensure that the PCB is designed to dissipate heat efficiently.
  • To troubleshoot issues, start by checking the input voltage and current, and ensure that the output voltage is within the expected range. Check for any signs of overheating, and verify that the feedback loop is stable. Use an oscilloscope to check for any oscillations or noise on the output. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • Yes, the VIPER38HDTR is designed for high-reliability applications. It has a high MTBF (Mean Time Between Failures) and is qualified for automotive and industrial applications. However, ensure that your design meets the recommended operating conditions, and follow proper PCB design and manufacturing guidelines to ensure reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VIPER38HDTR Overview

Use the download button to access the VIPER38HDTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VIPER, or try a keyword search, such as Switching Regulator or Controllers
