A good PCB layout for VIPER38LDTR involves keeping the high-frequency switching nodes (e.g., drain and source) as close as possible to the IC, using a solid ground plane, and minimizing the length of the traces connecting the IC to the external components.
To ensure the VIPER38LDTR operates within its SOA, monitor the device's junction temperature, drain-source voltage, and drain current. Ensure that the device is not subjected to excessive voltage, current, or temperature stress, and provide adequate heat sinking and thermal management.
When selecting external components, consider the component's voltage and current ratings, power handling capabilities, and parasitic characteristics (e.g., ESL, ESR). Ensure that the components are compatible with the VIPER38LDTR's operating frequency and voltage range.
To troubleshoot common issues, use a systematic approach: 1) Verify the PCB layout and component selection, 2) Check the input and output voltage and current waveforms, 3) Monitor the device's temperature and current consumption, and 4) Consult the datasheet and application notes for guidance on specific issues.
The VIPER38LDTR is a high-voltage, high-frequency offline converter IC with a unique set of features, such as a built-in high-voltage startup circuit and a low-power standby mode. Compare the VIPER38LDTR's specifications and features with other STMicroelectronics ICs to determine the most suitable device for your specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VIPER38LDTR Overview

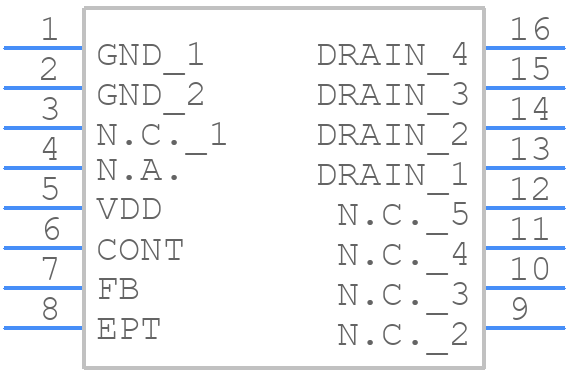

Use the download button to access the VIPER38LDTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VIPER,
or try a keyword search, such as Switching Regulator or Controllers
